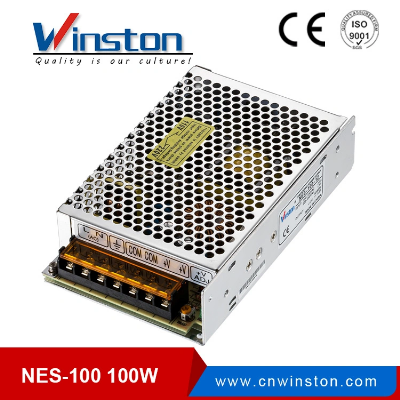

NES-100 Series Switching Power Supply 1.INPUT:110V or 220V 2.CE RoHS Approval 3.Size:159*98*38mm (L*W*H) 4.2 Year Warranty MODELNES-100-5NES-100-12NES-100-15NES-100-24NES-100-48DC VOLTAGE5V12V15V24V48VCURRENT RANGE0 ~ 20A0 ~ 8.5A0 ~ 7A 0 ~ 4.5A0 ~ 2.3AEFFICIENCY80%83%84%86%86%WAVE & NOISE 80mVp-p120mVp-p120mVp-p120mVp-p150mVp-pADJUSTABLE RANGE FOR DC VO;LTAGE±10%±10%±10%±10%±10%LINE REGULATION±0.5%±0.5%±0.5%±0.5%±0.5%LOAD REGULATION±1%±0.5%±0.5%±0.5%±0.5%SETUP, RISE HOLD UP TIME 800ms, 60ms,50ms/230VAC at full loadVOLTAGE RANGE90~132VAC/180~264VAC by switch 254~370VDCFREQUENCY RANGE47 ~ 63HzIMPACT CURRENT Cold start current 45A/230VACWORKING TEMP.-10 ~ +50ºCOVERLOAD PROTECTION105%-160% cut off the output , automatic recoveryOVER VOLTAGE PROTECTION115%-135%shunt down O/P voltage,re-power on to recoverWITHSTAND VOLTAGE I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minuteISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:500VDC/100M OhmsDIMENSION195*98*38mm (L*W*H)WERIGHT0.55kgPACKING 34*32*24cm/30pcs/17kg1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.3. Tolerance : includes set up tolerance, line regulation and load regulation.4. Line regulation is measured from low line to high line at rated load.5. Load regulation is measured from 0% to 100% rated load.6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.DimensionPS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time. Our Services 1. Prompt reply: Any inquiry or questions would be replied within 24 hours.2. Quality Product: Manufacture company, each of the products is tested and calibrated.3. Hospitality: Offer smiling service and your visiting is highly welcomed4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.Trade Information Trade TermsFOB,CIF,CFR,EXW,Payment termsT/T,L/C,Western union,Paypal,Escrow,MoneyGramPayment conditions30% deposit in advance,70% balance before shipping.Delivery time3-7working days after deposit,2-4 working days for inventoryPackingNeutral carton,Wooden case for large sizeShippingBy sea,by air and by express deliveryPayment conditions30% deposit in advance,70% balance before shipping.Delivery time3-7working days after deposit,2-4 working days for inventoryPackingNeutral carton,Wooden case for large sizeShippingBy sea,by air and by express delivery /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
