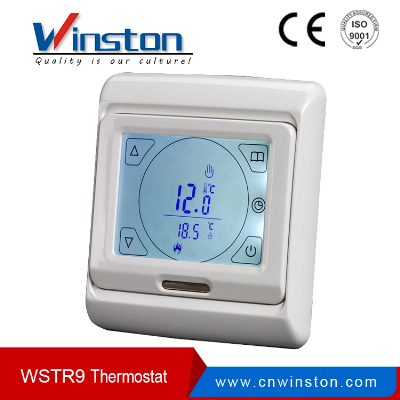

Winston Touch Screen Period Programming Thermostat Wstr9

Winston Touch Screen  Period Programming Thermostat WSTR9Touch Screen Period Programming Thermostat Weekly circulation, it is possible to set 6 periods called  events each day with corresponding pre-set temperatures,also you can select " Period control mode" or "manual mode" accroding to your individual requirements,The thermostat is recommended for the control of electric heating device or on/off value actuator used in water-based heating system. Technical ParametersVoltage230VAC,50/60HzPower Consumption2VASetting Range 5ºC---90ºCLimitation Range5ºC--60ºC (factory setting 35ºC)Accuracy of temperature measurement 0.5~10 Adjustable, factory setting±1ºCAmbient temperature -5~50ºCProtective housingIP20Housing material anti-flammable PCDisplay symbolsUser operation1) Power key " "You can turn on/off the thermostat by pressing this key. Also you can confirm and exit by pressing " "key when you have completed the setting of every parameter.2) The increase key" "and the decrease key" "In the period control mode or comfort mode , when you press the increase/decrease key once, alternate display stops in the bottom right region and the value of the pre-set temperature will increase/decrease 1 . It will recover the alternate displaywith no operation for 3 seconds.3) Time setting key "you can adjust the time and week by pressing the key once. If it is pressed, the hour bit flashes. Then you can press " " key and " "key to change its value. When you cmplete the setting of hour bit, you can press this key to confirm and continue the setting of minute bit and week bit sequently. After the completion of time, you can press" "to confirm and exit.4) Mode selection key" M "You can select period control mode or comfort mode by pressing the key. If you press this key and hold for 3 seconds, you can enter the mode of periodprogramming.5) Locking " " and unlockingWhen you press " "and" "at the same time and hold for 3 seconds, the thermostat will be locked/unlocked. When it is locked, no operation can be carried out until it is unlocked.Installation ManualTrade InformationTrade TermsFOB,CIF,CFR,EXW,DDPPayment termsT/T,L/C,Western union,Paypal,Escrow,MoneyGramPayment conditions30% deposit in advance,70% balance before shipping.Delivery time3-7working days after deposit,2-4 working days for inventoryPackingNeutral carton,Wooden case for large sizeShippingBy sea,by air and by express deliveryPayment conditions30% deposit in advance,70% balance before shipping.Delivery time3-7working days after deposit,2-4 working days for inventoryPackingNeutral carton,Wooden case for large sizeShippingBy sea,by air and by express delivery  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
