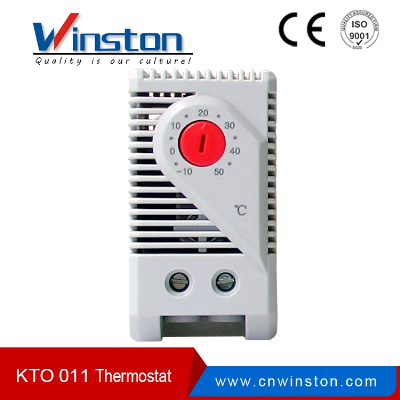

Electronic Controller Small Compact Industrial Thermostat (KTO 011)

Electronic Controller Small Compact Room Thermostat (KTO 011)Features:Large setting rangeSmall compact sizeSimple to mountHigh switching performanceKTO 011: Thermostat (normally closed); Thermostat opens on temperature rise.Contact breaker for regulating heaters.or for switching signal devices.Comes with red temperature dial.KTS 011: Thermostat (normally open); Thermostat closes on temperature rise.Contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.Comes with blue temperature dial.ApplicationTechnical dataModelKTO 011 ThermostatSwitching difference 12.6 °F ± 7 °F tolerance (7 K ± 4 K)Sensor element thermostatic bimetalContact type snap-action contactService life > 100,000 cyclesMax. switching capacity 15 A resistive / 2 A inductive @ AC 120 V 10 A resistive / 2 A inductive @ AC 250 V DC 30 WMax. inrush current AC 16 A for 10 sec.Connection 2-pole terminal, clamping torque 0.5 Nm max.: solid wire - AWG 14 max. (2.5 mm²) stranded wire (with wire end ferrule) - AWG 16 (1.5 mm²)Housingplastic, UL 94V-0, light greyMounting clip for 35 mm DIN rail, EN 60715 (or for Exhaust Filter EF 118 Series)Mounting position verticalOperating / Storage temperature -49 to +176 °F (-45 to +80 °C)Dimensions 2.4 x 1.3 x 1.7" (60 x 33 x 43 mm)Weight approx. 1.4 oz. (40 g)Protection type IP20  Setting range  Part No.(NC) Part No. (NO) +32 to +140 °F01140.9-00 01141.9-00 0 to +60 °C 01146.9-00 01147.9-00 -10 to +50 °C 01142.0-00 N/A +10 to +70 °C N/A 01149.9-00 -15 to +45 °C 01157.0-00 01156.0-00 +20 to +80 °C 01159.0-00 01158.0-00PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.    Example of connection and dimension:PackageOur Services1. Prompt reply: Any inquiry or questions would be replied within 24 hours.2.  Quality Product: Manufacture company, each of the products is tested and calibrated.3.  Hospitality: Offer smiling service and your visiting is highly welcomed4.  Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.Trade InformationTrade TermsFOB ,CIF,CFR,EXW,Payment termsT/T,L/C,Western union,Paypal,Escrow,MoneyGramPayment conditions30% deposit in advance,70% balance before shipping.Delivery time3-7working days after deposit,2-4 working days for inventoryPackingNeutral carton,Wooden case for large sizeShippingBy sea,by air and by express deliveryPayment conditions30% deposit in advance,70% balance before shipping.Delivery time3-7working days after deposit,2-4 working days for inventoryPackingNeutral carton,Wooden case for large sizeShippingBy sea,by air and by express delivery/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
