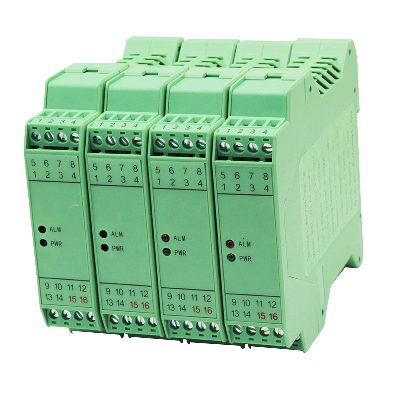

AC/DC85-265V Power 4-20mA PT100 Temperature Converter Thermal Resistance Input

  Product Description. PT100 temperature transmitter accepts the thermal resistance signal from the site,isolates and transformers it to standard current or voltage signal,then send the standard signal to the control room,PLC DCS and display instrument.. PT100,Cu50 sensor direct interface,containing linearized long line compensation.4-port isolation,the 2 output routes areisolated from each other.. DIN T rail independent mounting,terminals pluggable.. BSR has 3 types,1 in/1 out,1 in/2 out,2 in/2 out,input and output signal can be customized.Product Parameters                                                                                         Input Input Signal PT100,Cu50 and other RTD signals RTD Excitation Voltage 2.5V Allowed Line Resistance ≤100Ω                                                                                         Output Output Signal 4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;Customized Output Load Resistance RL≤500Ω(output current signal); RL≥1KΩ(output voltage signal);                                                                                Other Parameters Power Supply DC24V,±10%;AC85-265V Current Consumption ≤70mA(1 in 1 out,24V power supply,output 20mA); ≤90mA(1 in 2out,24V power supply,output 20mA); ≤100mA(2 in 2 out,24V power supply,output 20mA); Accuracy 0.2%F.S. Temperature Drift 0.005%F.S./ºC (-20ºC~+55ºC) Isolation Intensity 1500V AC/1min(between input-ouput-power) Insulation Resistance ≥100MΩ(between input-ouput-power) Working Temperature & Humidity -20ºC~+55ºC EMC Complies with GB/T 18268(IEC61326-1) Applicable Equipment 2-wires or 3-wires RTD Detailed PhotosSelectionProduct sizeWiringCompany ProfileCertifications /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
