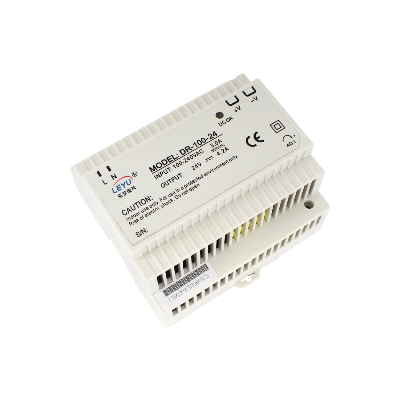

SPECIFICATIONSOUTPUT ModelDR-100-12DR-100-15DR-100-24DC Voltage 12V15V24VRated Current 7.5A6.5A4.2ACurrent Range 0-7.5A0-6.5A0-4.2ARated Power 90W97.5W100.8WRipple & Noise 120mVp-p120mVp-p150mVp-pVoltage Adj. Range 12-15V15-18V24-29VVoltage Tolerance ±2%±1%±1%Line regulation±1%±1%±1%Load regulation±1%±1%±1%Setup, Rise Time 2700ms,80ms/230VAC 2700ms,80ms/115VAC at full loadHold Up Time 50ms/230VAC 18ms/115VAC at full loadVoltage Range 85~264VAC 47~63 Hz; 124~370VDCAC Current1.6A/115V 0.96A/230VEfficiency87%87%89%Inrush Current Cold start 30A/115VAC 45A/230VACLeakage Current100M Ohms / 500VDC/25ºC/70%RHSafety StandardDesign refer to UL60950-1,TUV EN60950-1, EN50178EMC StandardEN61240-3,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2, EN61204-3,heavy industry level, criteria ADimension100*93*56mm(L*W*H)Weight0.35KgPacking36pcs/13.6Kg/0.89CUFTNOTE 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation.4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
