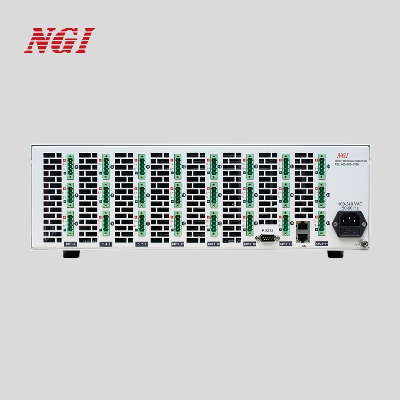

Computer Controlled Programmable Battery Simulator for Battery Charger Testing N83624 Series High-accuracy Multi-channel Battery SimulatorA battery simulator is an electronic equipment that emulates numerous  properties of a real battery. These properties are power, voltage, current,  etc. The battery simulator supplies the required voltage, power, and current to the mobile device in the same manner as an actual battery. In a way, a simulator is a programmable electronic battery.Product IntroductionN83624 is a programmable battery simulator with low-power, multi-channel and high-accuracy, suitable for BMS/CMS test. It is highly integrated, single device with up to 24 channels. Each channel is isolated. Users can set the voltage & current for each channel on application software, which is easy to use and can meet the needs of multi-channel and multi-data. The software can also provide graphs, data analysis and report function. N83624 is equipped with high-definition color LCD screen, available for local operation.Application Fields1.BMS/CMS 2.Cell simulation3.Smart Wearable 4.Charging and standby test5.Bluetooth earphone 6.Sleep current and shutdown leakage current test7.Electric Tool 8.Motor driver and power loading test9.Mobile Phone 10.Charging and battery simulationMain Features*Voltage range: 0-6V/0-15V *Current range: 0-1A/0-3A/0-5A*Single device with up to 24 channels, each channel isolated*Fast communication response , within 10ms for all channels programming response*Remote sense for high accuracy*Professional application software, with data analysis and report*High-definition color LCD screen, available for local operation*Standard 19-inch 3U, available for rack installation*LAN port and RS232 interface; dual LAN ports, convenient for cascade application*Fast dynamic response, less than 100μs for load varying from 10% to 90% and voltage recovering within 50mV of previous voltageUltra-high accuracyN83624 current resolution is as low as 0.1μA. Ultra-high accuracy, ultra-low ripple and noise index make N83624 an ideal choice for battery simulation application. The ultra-high accuracy of N83624 output and measurement can be directly used in product calibration and test, eliminating the use of external high-accuracy measuring instruments and saving cost for users.Ultra-high integrationN83624 integrates up to 24 channels that can be connected in series mode in 19-inch 3U size, providing a compact solution for ATE test systems in BMS, CMS and similar large-scale high-density production sites.Battery simulation suitable for BMS chips test of various specificationsN83624 series battery simulators have multiple functions and features, supporting Source, All CH, Charge, SOC Test, SEQ, Graph, etc.One device can achieve multiple uses, streamline test equipment and optimize test procedures. N83624's internal circuit is optimized for different chips, which can be adapted to test BMS chips of various specifications.Fast dynamic responseN83624 series has fast dynamic response capability. The response time of load varying from 10% to 90% and voltage recovering within 50mV of previous voltage is less than 100μs, which can ensure the rising waveform of voltage or current is high-speed and without overshoot, and provide stable power for the DUT. This feature can meet the demand for product test with strict power requirements.ExhibitionsProduct Line     ModelN83624-06-01N83624-06-03N83624-06-05N83624-15-01Current1A/CH3A/CH5A/CH1A/CHVoltage6V/CH6V/CH6V/CH15V/CHPower6W/CH18W/CH30W/CH15W/CHChannel Number24CH CV ModeRange0-6V0-15VSetting Resolution0.1mVSetting Accuracy(23±5ºC)0.01%+1mV0.01%+3mVReadback Resolution0.1mVReadback Accuracy(23±5ºC)0.01%+1mV0.01%+3mVTemperature Coefficient (0-40ºC)20ppm/ºCLong-term Stability80ppm/1000h Dynamic CharacteristicsVoltage Rise Time
