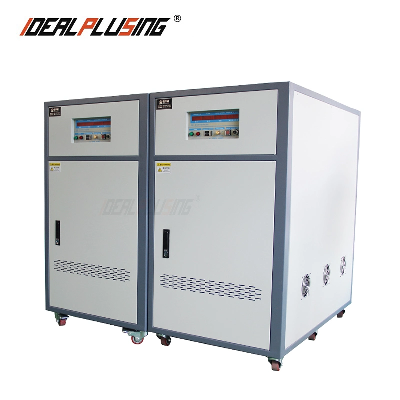

Single Phase Frequency Converter 220V 50Hz 60Hz Transform 2kVA

  PERFORMANCE CHARACTERISTICS  1Complete isolation of input and output technology, safe and reliable power supply2SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output3IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency4The unique double-loop control mode of instantaneous value and effective value is adopted, with high control precision and good waveform quality, which can adapt to various loads5High power IGBT module and highly integrated module drive circuit, reliable operation, strong overload capacity, low loss, and high efficiency6Suitable for resistive, inductive, rectifier, and other loads7It has multiple protection functions for abnormal conditions such as overheating, overcurrent, and short circuit8It has the function of setting parameter memory, (10-groups) shortcut key operation9The power supply voltage and frequency can be adjusted online, and the frequency can change in real-timeAPPLICATION  1Home appliances8Photovoltaic2Motors9Lamps3Power tools10Electronic transformers4Switching power supplies11Electronic components5Power adapters12Low-voltage distribution6UPS13Power 7Information and communication14Other industriesSPECIFICATION-IPS-FC61 SERIES  BrandIDEALPLUSINGModelIPS-FC6101IPS-FC6102IPS-FC6105IPS-FC6110Output capacity1KVA2KVA5KVA10KVAInput formatSingle phase 2 wires+GND wireInput voltageSingle phase 220VAC±15%Input frequency50Hz/60Hz±5HzOutput formatSingle phase 2 wires+GND wireOutput voltageLow grade0.1V~150.0VHigh grade0.1V~300.0VVoltage regulation step0.1VCurrentLow grade 110V9.0A18.0A45.0A91.0ALow grade 220V4.5A9.0A22.50A45.8AOutput frequencyFixed frequency: 50Hz, 60Hz; FM 45-400hz,Frequency adjusted stride0.1HzFrequency stability≤± 0.05%Voltage stability
