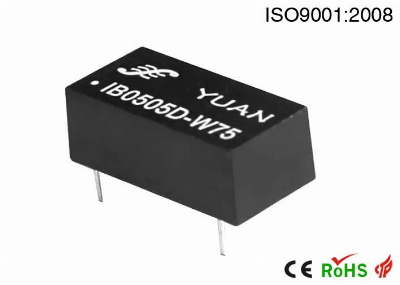

1W-2W DC DC Converter Switching Power Supply

3.3V Output DC-DC Converter with short circuit protectionIBxxxxS/D Series DC DC Converter Features:Low cost, small size.High power density.High galvantic isolation.No heat sink required.Regulated single/dual output.Fixed input.1KV isolation.Rated 2-5W, 6-12W, 13-20W outputIndustrial standard pin-outPCB MountingOver current/short circuit protectionIBxxxx S/D Series DC DC Converter Applications:Electric Power System, Power monitoring, voltage conversion.Dual power isolation in digital communication ports of RS232/485, CAN bus.Power supply isolation in intelligent control, security equipments, telecom, etc.Safety isolation in ground loop elimination, medical equipments and instrument.Isolation & power supply for analogue electric circuit ( Transmitter & sensors).Power supply isolation & transfer for safety monitoring and smart building system.Ground loop interference control.Car electric circuit power isolation & distribution.Battery power supply, voltage transfer, power distribution.PLC, DCS, PC isolation regulated power supply.Part No. Input Voltage(VDC) Output Voltage Efficiency(%,Typ.) Package IB0505D-1W 5 5 71 DIP IB0505D-W75 5 5 71 DIP IB0512D-1W 5 12 76 DIP IB1205D-1W 12 5 71 DIP IB1212D-1W 12 12 76 DIP IB1209D-1W 12 9 72 DIP IB2405D-1W 24 5 71 DIP IB2409D-1W 24 9 72 DIP IB2412D-1W 24 12 79 DIP IB0503S-1W 5 3.3 64 SIP IB0505S-1W 5 5 71 SIP IB0505S-W5 5 5 71 SIP IB0505S-W75 5 5 71 SIP IB0512S-1W 5 12 76 SIP IB0524S-1W 5 24 60 SIP IB1205S-1W 12 5 71 SIP IB1212S-1W 12 12 76 SIP IB1209S-1W 12 9 72 SIP IB2409S-1W 24 9 72 SIPIntroduction of SunYuan's newest DC-DC Conveters:1.GRS Series 1-3W Small Size 6KV high Isolation Type DC-DC power Modul2.GRC Series 5V, 12V, 24V Input Signal to 250V, 300V, 400V Output Signal Isolated High Voltage dc/dc converter3.GRE Series 6kvd Double Loop Isolated Output High Voltage DC/DC Power Module 4.WHB series:10KV high isolation antistatic DC-DC module powerIntroduction of SunYuan Technology normal used DC-DC Converters1)The special isolation dc-dc converters for entrance guard swipe machine: IB0505S-1W; IB0512S-2W; IB0305S-W5IB/VB series VBXXXXS-1W/2W products, the isolation voltage is 1KVAC between input and output, strong anti-interference ability. Constant voltage input and Regulated voltage output (nominal error < 2%), the output has self recovery overload short circuit protection function. Standard SIP 7 Pin/DIP 14 Pin flame retardant package.Detailed technical information:https://sunyuan.en.made-in-china.com/product/MXSmnjdunxhV/China-2W-Fixed-Input-Regulated-Output-DC-DC-Converter-IB-X-X-X-X-.html2)RS485/422/232/CAN bus interface isolation dc converter: B0505S-1W; B0509S-W1; B0305S-W5B series BXXXXS-W5/1W products, the isolation voltage is 1KVAC between input and output. Fixed voltage input & non-regulated output (nominal error < 5%) standard SIP 4 Pin / DIP 8 Pin low cost, small size flame retardant package. It is widely used in computer 232/485, remote communication and intelligent control.Detailed technical information:https://sunyuan.en.made-in-china.com/product/BvnEsXucZJhK/China-Low-Cost-Small-Size-1kv-Isolation-Fixed-Voltage-Input-Unregulated-3V-3-3V-5V-12V-24V-0-1-1W-DC-DC-Converter.html(3)Distribution load tester, power management terminal 485 interface anti-surge anti-static high isolation dc-dc converter module: E/F/G/H/WRF/WRE/VDH seriesWe designed and produced a series of high isolation dc-dc converter module with anti-surge and anti-static interface RS485 according to the requirements of electronic industry instrument manufacturers such as distribution load tester and power management terminal and basis of the national electronic industry standard (DL) DL/T614-1997 and (DL) DL/T614-2007. The DC-DC converter module used in these electronic industries has the following functions: anti-surge 4KVAC/6KVAC high isolation, 8KV anti-static, output voltage stabilization (2% accuracy), also with self-restoring overload short circuit protection output and so on. Common product specifications have: 3KVAC/6KVAC high isolation, output power 0.2W/0.5W/1W/2W, 5VDC/9VDC/12VDC/15VDC single voltage output, +5VDC/+9VDC/+12VDC positive and negative double voltage output and ++ 5VDC/++ 9VDC/++ 12VDC/++ 15VDC double isolated double voltage output.Detailed technical information:https://sunyuan.en.made-in-china.com/product/xvZEkjnVLXWO/China-Low-Cost-Can-Bus-Port-Signal-Isolation-Module.htmlDetailed technical information:https://sunyuan.en.made-in-china.com/product/JBfxtpCzOihj/China-DC-DC-Converter.html(4) The power supply automation equipment DC/DC double isolation circuit dc-dc converter modules: D050512S-1W; D240505S-2W; D050505S-1WD S series constant voltage input, 1KVAC double isolation double circuit unsteady voltage output DC-DC Converter module is mainly used in instruments, transducers, CNC equipment and other occasions that require multiple distributed power isolation. Standard SIP 7 Pin/DIP 14 Pin flame retardant package.Detailed technical information:https://sunyuan.en.
