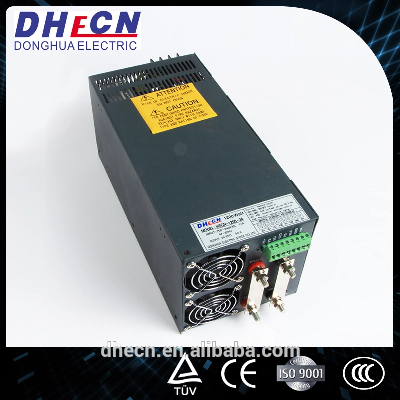

Hscn-1500-12 Switching Power Supply with Parallel Function 1500W

HSCN-1500,1500W switching power supply with parallel function 12VDC,24VDC,48VDCFeatures:· High reliability, low ripple ·AC input voltage AC200~260V ·Protections : Short circuit/ Over load/Over voltage/ Over   temperature·Built-in remote ON-OFF control and remote sense function ·With parallel function ·Can adjust from 40%~100% output voltage by external ·  control 2-5V ·Forced air cooling by built-in DC fan ·1 year warranty ·Dimensions: 291*132*132mm(L*W*H) MODEL HSCN-1500-12 HSCN-1500-15 HSCN-1500-24 HSCN-1500-48 OUTPUTDC Voltage12V15V24V48VVoltage Tolerance±1%±1%±1%±1%Rated Current125A100A62.5A32ACurrent Range0-125A0-100A0-62.5A0-32ARated Power1500W1500W1500W1536WRipple & Noise120mVp-p150mVp-p240mVp-p480mVp-pDC Adjustment Range±5%; Can adjust from 40%~100% output voltage by external control 2-5VSetup, Rise, Hold Time800ms, 50ms, 16ms at full loadINPUTVoltage Range200~260 VAC47~63 Hz;290~370VDCAC Current12A/ 230 VACEfficiency83%84%85%87%Inrush Current120A/230VLeakage Current3.5 mA/240VACPROTECTIONOver Load110%~135%Protection: Protection:Current limiting, delay shut down o/p voltage, re-power on to recoverOver Voltage110%~135%Protection type: Shut down o/p voltage, re-power on to recoverOver TempTSW1(Power transistor) When temp. >100 ºC, shut down o/p voltage, re-power on to recoverENVIRONMENTWorking Temp., Humidity-10ºC~+65ºC,20%~90 %RHStorage Temp., Humidity-20ºC~+85ºC,10%~95 %RHVibration10~200Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axesSAFETYWithstand VoltageI/P-O/P, I/P-FG:1500VACIsolation ResistanceI/P-O/P, I/P-FG, >100M Ohms / 500VDCSTANDARDSafety StandardDesign refer to UL1950,CSA22.2,IEC60950EMC StandardDesign refer to FCC Part 15 Class AOTHERSWeight4.5Kg;Packing4pcs/20kg/CARTONSpecial FunctionDC Voltage adj. Remote Control. Remote sensing. Parallel operation.NOTE1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.HSCN-1500, HSCN-1200 are the same dimension.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
