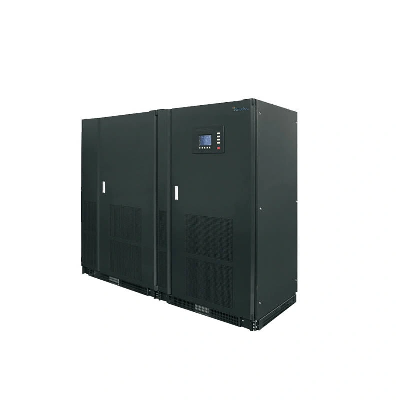

Large Capacity Industrial Online UPS Uninterruptible Power Supply

Model: XYH series 300-2400SPower range: 300k-2400kVAWorking mode: 3P in and 3P out low frequency online, 18 pulse rectification   Product introductionThree in three output dual conversion online industrial UPS, with capacity ranging from 300kVA to 2400kVA, adopts the sixth generation IGBT power device and static switch, and uses the latest dual core DSP to achieve full digital control; Adopted the industrial high standard design , and the internal electrical connection is made of conductive alloy wrapped with low smoke halogen-free resin, which can withstand 20000 V high voltage, with clear wiring, beautiful structure and good heat dissipation, greatly reducing the volume and weight of the power supply; It has perfect detection and protection functions, and each parameter index basically reaches the first class level of the national standard; The UPS intelligent monitoring can be realized by using a color LCD touch screen with Chinese and English interfaces, configuring RS232, RS485 and other interfaces, and selecting SNMP cards.Performance characteristicsDouble transformation onlineWide voltage range inputDual core DSP full digital controlThe sixth generation IGBT device+advanced SVPWM (space vector modulation) technologyThree phase off regulation, balanced voltage stabilizationAdvanced redundant parallel technology, easy expansionThose with GCI grid connection operation functionPerfect protection functionReliable load capacityIndustrialized design to adapt to harsh electrical environmentFriendly human-computer interface, configured with large Chinese LCD touch screenRich network monitoring interfaces: RS232  RS485  RJ45  dry contact can be equipped with Wi Fi function to intelligently monitor UPS power supply equipment with mobile phone or tablet computer  Application area It is widely used in rail transit, data center, oil field, public security, army, communication, radar station, electric power, industrial site, airport, radio and television, banking, securities, medical system and other industries.Technical parameter  ModelXYH300KSXYH500KSXYH600KSXYH800KSXYH1000KSXYH2400KSCapacity(kva)300kva500kva600kva800kva1000kva2400kvaState grid inputInputvoltage range400VAC±25%Input fre. range50Hz/60Hz±5%Input power factor≥0.99OutputOutput voltage and accuracy400VAC±1%Output frequency and accuracyState grid synchronization, 50/60Hz ± 1Hz; Inverter state, 50/60Hz ± 0.1HzVoltage phase deviation120°±1°Unbalance of parallel load current≤5%Voltage unbalanceBalanced load
