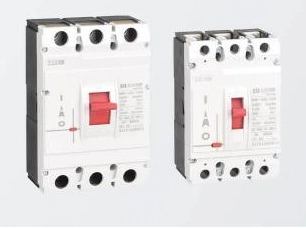

China Manufacturing Cheap Wholesale Price Plastic Moulded Case Circuit Breaker

Product DescriptionM1 Series Moulded Case Circuit Breaker 1000V 3p 250A 400A  MCCBStandard: circuit breaker and auxiliaries comply with the following international standard:1.IEC/EN 60947-1Low-voltage switchgear and controlgear-part 1: General rules;2.IEC/EN 60947-2Low-voltage switchgear and controlgear-part 2: Circuit breakers; MCCB(Standard use environment for  MCCB)1. Ambient temperature: Within the range of -5ºC--+55ºC(However, when the temperature exceed 40ºC,it should be considered to reduce the capacity to use);2. Relative humidity: Within the range of 45%--85%;3. Altitude: 2000m or less(However, if it exceeds 1000m, atmosphere correction through humidity test and withstand voltage test can be considered);4. Atmosphere where excessive steam, oil steam, smoke, dust, salt and other corrosive materials do not exist;Classification:According to the poles:                                          2-poles, 3-polesAccording to the rated current:                               Fix type Product Parameters Thermal-Magnetic fixed type Circuit Breakers ModelXHM1-125Breaking Capacity CodeLMHRated Current of Frame size- Inm                               (A)160ARated Current-In(40,50 or 55ºC)                                                    (A)10- 12,5-16-20 - 25 - 32 - 40  - 50 - 63 - 80 - 100 -125 - 160(150)ARated İnsulation Voltage -Ui(a.c.) 50-60Hz                         (V)800VRated operation Voltage  -Ue(a.c.) 50-60Hz                               (V)400/415VNumber of Pole  34Rated ultimate short Circuit breaking Capacity  kA  Icu AC400V/50Hz O-CO       (KA)253550Rated service short Circuit breaking Capacity  kA  Ics AC400V/50Hz O-CO-CO  (KA)12.52237.5Rated short-circuit breaking capacity Icm(peak)/cos ф AC400V/50HZ O-CO        (KA)41/0.373.5/0.25110/0.25Rated impulse withstand Voltage -Uimp                                     (V)8000Dielectric Propery (V)    3000lonization distance                                                                      (mm)≤50/0Endurance  Total Cycles  8000Electrical Life  1000Mechanical Life  7000Over Current trip Thermal and Magnetic release fix type              √Category   (EN 14048.2/IEC 60947-2)Main circuit  A/0Auxiliary circuit  AC-15Under Voltage Release  √Shunt Release        √Auxiliary Contact     √Alarm Contact       √Auxiliary Contact and Alarm Contact  √Handle Operation Mechanism  √Electrical Operastion Mechanism  √Terminal cover       √Phase seperator     √Extention Handle   -W (mm)3P924P122L (mm)3P1504P150H (mm)3P684P86WeightFixed version 3P/4P1.2/1.6Plug-in version 3P/4P1.4/1.8Draw out version 3P/4P-  Detailed Photos/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
