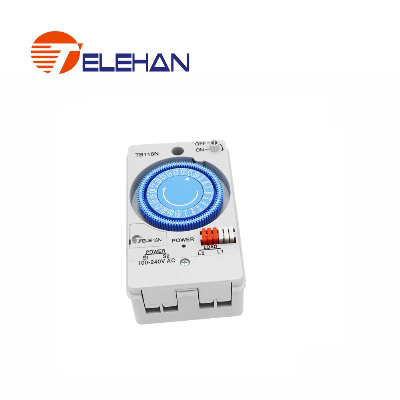

Tb118 24 Hours Mechanism Timer Switch

TB118 Mechanical Time Switch, 24 Hours timer switch The Mechanical Timer is suit for water heater, Water dispenser, Street lamp, Staircase lamp, Advertising lamp box, Breed aquatics, Irrigation, office power auto control, anywhere need time control in civilian, home or industrial, etc. It can set 8 programs to control ON or OFF of electric appliance in 24 hours or set 48 programs in one week. It can be programmed to avoid the peak of power, and distribute power in time limit to save energy. This timer is a kind of module for DIN guide rail, easy to installation in illumination box, and its so compact size with pretty form.. Its time base component is adopt synch pulse motor and it is strong anti-jamming, small consume with performance stability.DIN Guide Rail Programmable Mechanical Timer   Features:Working voltage: 100-240VAC common use Allowed voltage range: 85-264VAC Power supply frequency: 50Hz/60Hz common use Drive way: Quartz motor type Power cut compensation: Within 300Hrs (with nick-chrome battery inside) Timer precision: Difference of month: Within15 min (temperature: 25C Active time precision: Within 7.5 min (excluding adjustment error at initial stage) Period: 24Hrs Electric-consumed: 110VAC 1W 220VAC 2W Output: Circuit No.: One circuit Circuit composing: Same circuit (with voltage terminal input) Contact composing: Single pole single inlet Auto open/ close: Attached with ON/OFF switch *Contact capacity: Resistance: 15A Incandescence: 15A Resist (cosΦ=0.7): 12A Motor (cosΦ=0.7): 110VAC 750W 220VAC 1500W Time setting: Method: Fixed handle inserted, trip type Min. Unit: 15min Min. Interval: 30min Action no.: Standard: 6, Max: 48 Applicable environmental temperature: -10C~+50C Applicable environmental humidity: Below 85% Weight: 240gHow to UseProdunction Line Display:Shippment  and Payment: Brand Strategy: /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
