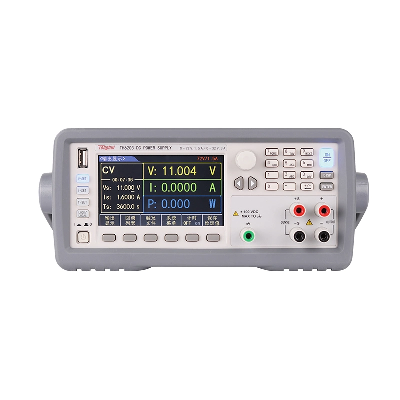

Product Descriptionhttps://ckt2017.en.made-in-china.com/contact-info.htmlBrief IntroductionFresh and simple system settings with Chinese and English operation interfacesHigh resolution: 24-bit color 4.3-inch TFTLCD, resolution: 480 x 272Linear design and double range outputHigh precision and high stability, low ripple and low noise1/2 2U super mini size and output and sampling terminal on the front and rear panelPowerful programming ability 100 groups of setting state memory saving and calling10 trigger files, 100 test sequences per file, loop output of programmingTiming output: time (0.1-99999.9s)Use rotary knob and numeric keyboard to set the voltage, current and output timePanel function button with backlight displayRemote measurement function, compensation for line voltage dropOutput control switchCopy screen functionOver voltage, over current protectionIntelligent temperature control fanSupport standard SCPI communication protocolSoftware monitoring via computerUpgrade instrument firmware via USB flashTechnical ParameterModelTH6201TH6202TH6203TH6212TH6213Rated Output (0ºC-40ºC)Channel/RangeRange1Range2Range1Range2Range1Range2Range1Range2Range1Range2Voltage0-20V0-8V0-32V0-15V0-72V0-32V0-32V0-15V0-72V0-32VCurrent0-5A0-10A0-3A0-6A0-1.5A0-3A0-6A0-12A0-3A0-6APower100W80W96W90W108W96W192W180W216W192WLoad Regulation± (% Output + Bias)Voltage≤0.01% + 4mV≤0.01% + 3mV≤0.01% + 3mV≤0.01% + 6mV≤0.01% + 5mVCurrent≤0.01% + 2mA≤0.01% + 5mA≤0.01% + 4mAPower Regulation± (% Output + Bias)Voltage≤0.01% + 4mV≤0.01% + 3mV≤0.01% + 3mV≤0.01% + 6mV≤0.01% + 5mVCurrent≤0.01% + 2mA≤0.01% + 5mA≤0.01% + 4mAProgramming ResolutionVoltage1mVCurrent0.1mARead-back Value ResolutionVoltage1mVCurrent0.1mAYear Accuracy(25ºC± 5ºC)± (% Reading +Bias)ProgrammingVoltage≤0.04% + 8mVCurrent≤0.1% + 5mAReadbackVoltage≤0.04% + 8mVCurrent≤0.1% + 5mARipple and Noise (20Hz-20MHz)Normal Mode Voltage≤3mVp-p/1mVrms≤4mVpp/1mVrms≤3mVp-p/1mVrms≤4mVp-p/1mVrmsNormal Mode Current
