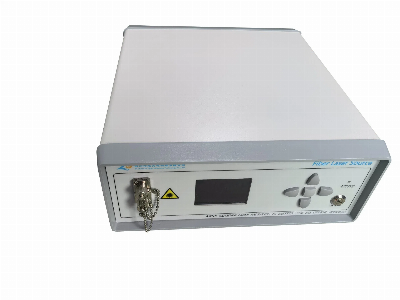

IntroductionFiber ASE broadband light source module adopts spectral flattening technology, and has high output power. Its working wavelength covers C+L band, which is suitable for fiber sensing applications. RS-232 interface and upper computer software can be provided to facilitate the monitoring of the status of the light source module.FeaturesStable powerFlat spectrumRemote monitoringApplicationsMedical imaging Optic fiber sensorFiber optic device testing ParametersUnitTyp.NotesOperating wavelengthnm1528~1603C+L bandOutput optical power(standard version)mW10~200Standard versionOutput optical power(high power version)500~1000High power versionAdjustable power function(optional benchtop)-Optical power adjustment range 10%~100%*The flatness of the spectrum remains unchanged when the optical power is adjusted.Flat spectral linesdB≤3(Type 2.5) Isolation degree of outputdB45 Short-term stability(15 min)dB≤ 0.02 Long-term stability(8h)dB≤ 0.05 DOPdB≤ 0.2 Type of fiber connector-FC/APC Fiber type-SMF-28e Single fiber Operating temperature°C-20 ~ +65 Storage temperature°C-40 ~ +85 Power supply-DC 5V OR AC 220V SizemmBenchtop 260×285×115Module 90(W)×70(D)×15(H)Communication protocol-RS232Optional power adjustment function and upper computer softwareNote:1.Output power and flatness can be customized according to customer requirements;2. The stability test environment is 25ºC after 10minutes of product preheating.Typical spectrum (2dB/D)Typical spectrum (10dB/D)Standard benchtop Standard moduleOrdering informationZGWavelength rangeOutput powerDiameter of pigtail casingFiber lengthConnector Packaging CL=C+L band10= 10mW9-0.9mm0=Flange0=NoneB=Benchtop20= 20mW2-2mm1 =1M1=FC/APCM=Module100=100mW200=200mW2 =2M2=FC/PC3=SC/APC4=SC/PC /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
