Multiple Output Switching Benchtop Four Channels DC Power Supply

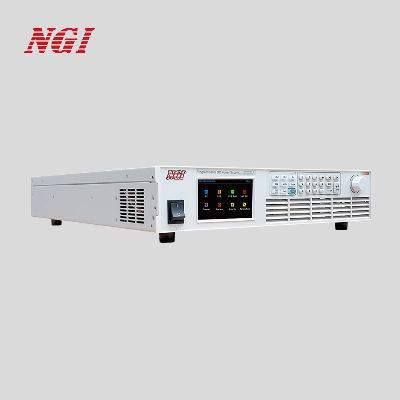

Multiple Output Switching Benchtop Four Channels DC Power SupplyN39400 Series High-accuracy Multi-channel Programmable DC Power SupplyProduct IntroductionN39400 series is a high-accuracy & multi-channel programmable DC power supply with standard 19-inch 2U design, available for rack installation. N39400 standalone supports Max. 4 channels output, with channels isolated. Both local operation on front panel and remote control on a computer are supported. N39400 can be widely used in lab test, system integration test, production aging line, etc.Application Fields1.School laboratory2.R&D laboratory3.Production line inspection4.Maintenance testMain Features*Automatic switch between CV and CC mode*Single device with up to 4 channels, each channel isolated*Low ripple and low noise*Remote sense for accurate measurement*Multiple protections: OVP, OCP, OTP and short circuit*Intelligent fan control*Lock function to avoid misoperation*Dual LAN ports design*CC&CV priority function*Equipped with LCD screen and user-friendly interface*Standard 19-inch 2U, available for rack installation*LAN port and RS232 interfaceUltra-high integration, single device with up to 4 channelsN39400 series adopts the standard 19-inch 2U design, with Max.4 channels in a single device. Each channel is isolated. One device can support 4-station test simultaneously, which greatly reduces the test equipment quantity and improves test efficiency.Remote controlN39400 series supports remote control, providing RS232 and LAN port to communicate with the computer, and realizing all functions on the panel via computer application software. Driver packages that support common developmentenvironments such as Visual C ++, Visual Basic, Delphi, C # and Labview are provided.Remote senseNN39400 series provides remote sense function, which can transfer the actual voltage of the load back to N39400 so that N39400 can compensate for the output voltage and eliminate lead wire errors.UI flat iconsUI flat icons offer convenient and quick operation.CC&CV priority functionN39400 has the function of selecting priority of voltage-control loop or current-control loop, which enables N39400 to adopt the optimal test mode for different DUTs, and thus protect the DUT.As shown in figure one, when the DUT requires reducing voltage overshoot during test, such as supplying power to a low-voltage processor or FPGA core, voltage priority mode should be selected to obtain fast and smooth rise voltage.As shown in figure two, when the DUT requires reducing current overshoot during test, or when the DUT is with low impedance, such as battery charging scenario, current priority mode should be selected to obtain fast and smooth rise current.Dual LAN ports for multiple devices controlN39400 is equipped with two LAN ports, which can support multiple devices control for quick adjustment and test.ExhibitionsProduct Line     ModelN39420-60-10N39436-60-15N39460-60-15Voltage60V/CHCurrent10A/CH15A/CH15A/CHPower200W/CH360W/CH600W/CHChannels4CHCV ModeRange0-60VSetting Resolution1mVSetting Accuracy (23±5ºC)0.05%+0.1%F.S.Setting Temperature Coefficient50ppm/ºCReadback Resolution1mVReadback Accuracy(23±5ºC)0.05%+0.1%F.S.Readback Temperature Coefficient50ppm/ºCCC ModeRange0-10A0-15A0-15ASetting Resolution1mASetting Accuracy (23±5ºC)0.1%+0.1%F.S.Setting Temperature Coefficient50ppm/ºCReadback Resolution1mAReadback Accuracy (23±5ºC)0.1%+0.1%F.S.Readback Temperature Coefficient50ppm/ºCVoltage Ripple(20Hz-20MHz)200mVp-p10mVrmsRise Time≤30msFall Time≤50msLoad Regulation≤0.01%(Voltage) / ≤0.03%(Current)Line Regulation≤0.01%(Voltage) / ≤0.02%(Current)OthersInterfaceLAN/RS232AC InputSingle phase, 220V AC±10%, frequency 47Hz~63HzTemperatureOperating temperature: 0ºC~40ºC, storage temperature: -20ºC~60ºCOperating EnvironmentAltitude
