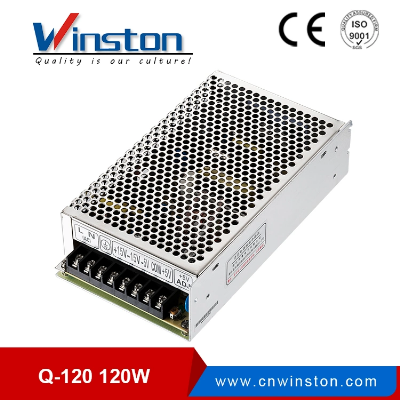

Q-120 120W Series Quad Output Switching Power Supply with Ce

Quad output switching power supply Description Model: Q-120B, Q-120C, Q-120D Power: 120W Input: AC110/220V+-20% Selectable by switch Output: 5v 12v -5v -12v /5v 15v -5v -15v/5v 12v 24v -12v Quality guarantee: 2 years after sell Competitived price and high reliability 105° C Output capacitor AC input power suitable for the world High efficiency and low operation temperature Soft-start current can reduce the AC input impact effect With short-circuit and overload protection Compact size, light weight 100% full-load burn-in test Installed with EMI filter, minimum wave Technical data                             MODELQ-120BQ-120CQ-120DDC VOLTAGE5V12V-5V-12V5V15V-5V-15V5V12V24V-12VRATED CURRENT0~11A0~4A0~1A0~1A0~10A0~3.5A0~1A0~1A0-8A0~2A0~2A0~1ARIPPLE&NOISE80mVp-p120mVp-p80mVp-p120mVp-p80mVp-p150mVp-p80mVp-p150mVp-p80mVp-p120mVp-p180mVp-p120mVp-pEFFICIENCY77%76%80%LOAD STABILITY±0.5%±5%±5%±5%±0.5%±6%±5%±6%±5%±5%±5%±5%LINE REGULATION±0.5%±1%±1%±1%±0.5%±1%±1%±1%±0.5%±1%±1%±1%ADJUSTABLERANGE FOR DC VOLTAGE±10%±5%±5%±5%±10%±5%±5%±5%±10%±5%±5%±5%SETUP,RISE,HOLDUP TIME200ms,50ms,20ms/230VAC at full loadVOLTAGERANGE90-132VAC/180-264VAC by switch 254-370VDC FREQUENCYRANGE47-63HZIMPACT CURRENTCold start current 35A/230VACOVERLOADPROTECTION105-150% cut offtheoutput, automatic recoveryOVER VOLTAGE PROTECTIONCH1:115-135% shut down O/P voltage ,re-power on to recover.WORKING TEMP-10~ +50°CWITHSTANDVOLTAGEI/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minuteISOLATIONRESISTANCEI/P-O/P,I/P-FG,O/P-FG:500VDC/100M OhmsDIMENSION199*110*50mmWEIGHT0.9kgPACKING42*31.5*26cm/20pcs/16kg  PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.   Wiring Diagram Our Services   1. Prompt reply: Any inquiry or questions would be replied within 24 hours.2.  Quality Product: Manufacture company, each of the products is tested and calibrated.3.  Hospitality: Offer smiling service and your visiting is highly welcomed4.  Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.Trade Information   Trade TermsFOB,CIF,CFR,EXW,Payment termsT/T,L/C,Western union,Paypal,Escrow,MoneyGramPayment conditions30% deposit in advance,70% balance before shipping.Delivery time3-7working days after deposit,2-4 working days for inventoryPackingNeutral carton,Wooden case for large sizeShippingBy sea,by air and by express deliveryPayment conditions30% deposit in advance,70% balance before shipping.Delivery time3-7working days after deposit,2-4 working days for inventoryPackingNeutral carton,Wooden case for large sizeShippingBy sea,by air and by express delivery/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
