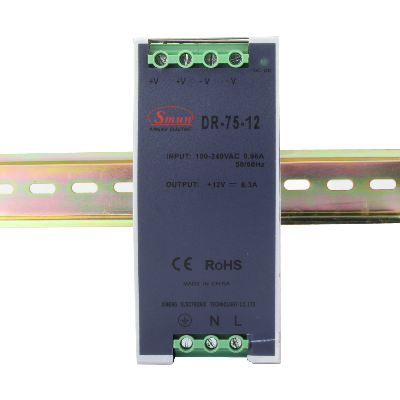

Smun Dr-75-12 75W 12VDC 6A DIN Rail Switching Power Supply

  MODELDR-75-5DR-75-12DR-75-24DR-75-48OUTPUTDC VOLTAGE5V12V24V48VRATED CURRENT15A6.3A3.2A1.6ARATED POWER75W76W76.8W76.8WRIPPLE&NOISE50mVp-p100mVp-p150mVp-p240mVp-pVOLTAGE ADJ.RANGE4.75-5.5V10.8-13.2V13.5-16.5V21.6-26.4VVOLTAGE TOLERANCE±2.0%±1.0%±1.0%±1.0%LINE REGULATION±0.5%±0.5%±0.5%±0.5%LOAD REGULATION±1.0%±0.5%±0.5%±0.5%SETUP,RISE TIME100ms,30ms/230VAC 100ms,30ms/115VAC at full loadHOLD UP TIME(TYP.)90ms/230VAC 12ms/115VAC at full loadINPUTVOLTAGE RANGE85-264VAC 120-370VDCFREQUENCY RANGE47-63HZEFFICIENCY(Typ.)70%76%80%81%AC CURRENT(Typ.)4.5A/115VAC 0.5A/230VACINRUSH CURRENTCOLD START 30A/115VAC 60A/230VACPROTECTIONOVERLOAD105-150% RATED OUTPUT POWERProtection type:Hiccup mode,recovers automatically after fault conditionOVER VOLTAGE5.75V-6.75V13.8V-16.2V17.2V-20.25V27.6V-32.4VProtection type:Hiccup mode,recovers automatically after fault conditionENVIRONMENTWORKING TEMP-10~+60°CWORKING HUMIDITY20-90%RH non-condesingSTORAGE TEMP,HUMIDITY-20~+85°C,10-95%RHTEMP.COEFFICIENT±0.03%°C(0-50°C)VIBRATION10-500HZSAFETY&EMCSAFETY STANDARDCE RoHSWITHSTAND VOLTAGEI/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minuteISOLATION RESISTANCEI/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RHEMI CONDUCTION&RADIATIONDesign refer to GB4943,UL60950,EN60950EMC STANDARDDesign refer to GB9254,EN55022 Class ADIMENSIONL100*W55.5*H125.2mmPACKING0.6kg,20pcs/13kg   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
