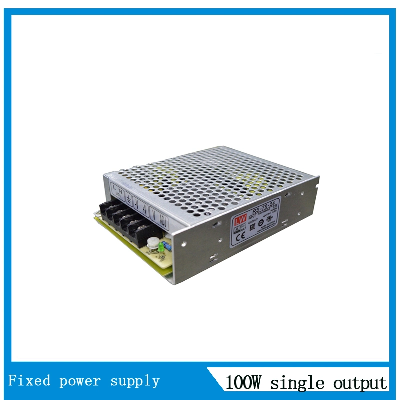

100W Single Output Switching Power Supplyswitching Power Supply for Electronic Instruments

Product Description100W single output switching power supplypeculiarity1. Full range AC input2. Withstand 300VAC surge input for 5 seconds3. No-load power consumption < 0.2W4. Small size, 1U low shape5. The operating temperature can be up to 70ºC6. Protection type: short circuit/over load/over voltage7. Natural air cooling8. High efficiency, high life and high reliability9. Power start LED indicator10.100% full load aging testIndustrial automation machinery, Industrial control systems, Mechanical and electrical equipment, electronic instruments, equipment and installations, household appliancesProduct ParametersexportationModel numberLRS-100-3.3LRS-100-5LRS-100-12LRS-100-15LRS-100-24LRS-100-36LRS-100-48Dc voltage3.3V5V12V15V24V36V48VRated current20A18A8.5A7A4.5A2.8A2.3ACurrent range0-20A0-18A0-8.5A0-7A0-4.5A0-2.8A0-2.3ARated power66W90W102W105W108W100.8W110.4WRipple and noise100mVp-p100mVp-p120mVp-p120mVp-p150mVp-p200mVp-p200mVp-pVoltage regulation range2.97-3.6V4.5-5.5V10.2-13.8V13.5-18V21.6-28.8V32.4-39.6V43.2-52.8VVoltage accuracy±3.0%±2.0%±1.0%±1.0%±1.0%±1.0%±1.0%Linear adjustment rate±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%Load adjustment rate±2.0%±1.0%±0.5%±0.5%±0.5%±0.5%±0.5%Start and rise time500ms,30ms/230VAC  500ms,30ms/115VAC(full load)Holding time55ms/230VAC  10ms/115VAC(full load)inputVoltage range85-264VACFrequency range47-63HzEfficiency (Typ.)84.5%86.0%88.0%88.5%90.0%90.5.%91.0%Alternating current(Typ.)1.9A/115VAC     1.2A/230VACInrush current (Typ.)Cold start:50A/230VACLeakage current
