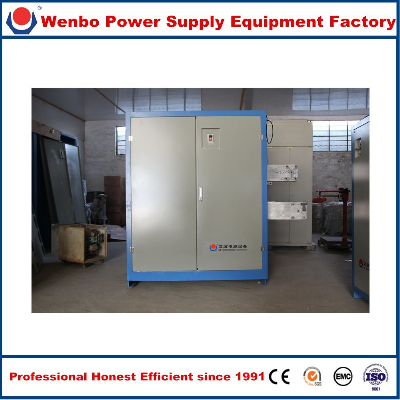

Kgy Series Aluminum Magnesium Titanium Hard Oxidized Pulse Power Supply Rectifier

We are professional and creative manufacturer.Our reliable quality of rectifiers will definitely satisfy your requirements. Product DescriptionTECHNICAL SPECIFICATION FOR IGBT RECTIFIERinput voltage3 phase 380V AC±10%,50/60HZ,or 3 phase 415V,440v,480v,600vACoutput voltage0-20000v dc adjustableoutput current0-30000a  adjustableAdjustment rangeFrom 0-100% continuously adjustable voltage and currentOutput conditioning methodSwitching mode,PWM Pulse controlMachine efficiency≥90%Constant voltage control accuracyWithin 1.0%of rated output voltageConstant current control accuracyWithin 1.0%of rated output currentInsulation resistance5MΩ or moreCooling systemForced air cooling,water cooled can be choosedOperating temperature -15-45ºC(overheating self-protect)Operation statusFull load at 24 hoursAmbient temperature-30-65ºCRelative humidity30-85%protectionOver heating,over current,over voltage,lack phase,over,load,input over/low voltage   Control mode6 meter cables Remote control box,front panel control,PLC interface,touch screen can be OEM madeBuying Guides:We are highly appreciate if you can provide the following details.  1. The productivity: xx per hour, xx hours per day. 2. Your application with the machine. 3. The power of your country,output &input voltage, output current, single phase/three phase? 4 .Air or water cooling model? 5.The shell is iron or PP? 6.See whether you need below optional functions or not? Optional FunctionAdvantage: 1) Small, light and high efficiency 2) High frequency pulse current output 3) Flexible use, simple operation 4) Complete protection function 5)extra function:0-5v,4-20ma,0-10v,rs485,PLC interface,timer,ampere hour meter,slow start,touch screen Follow ISO 9001 quality standard,CE&SGS certificate Product Application Wenbo Rectifier is widely used in plating gold,silver,zinc,nickel,copper,chrome, anodizing, electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative technologies obtain national patents and users worldwide. Hot Sale productsPackage &shipping  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
