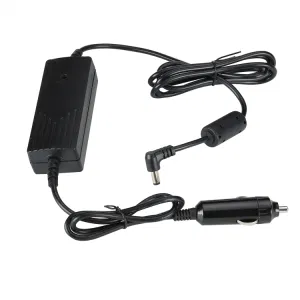

15V -- 24V 4A Max. 75W Switching Power Supply

Basic Info.Model NO.HD1070UsageLaptop, Switching, Mobile Phone, Game Player, Digital Camera, Phone, DisplayOutput TypeDCCertificationTUV, RoHS, ISO9001, CCCColorBlackTypeODMInternal StructureOn-Off TypePower SourceBuck TopologyConnectionDesktopBluetooth StandardNoBrandHientTrademarkHIENTTransport PackageCarton + PE BagSpecification105L x 40W x 26.5H(mm)OriginLinyi City, Shan Dong Province, ChinaProduct Description75W Max.Features• 11 --16VDC Input• Input Voltage Protetcion• LED Indicator• Protections:• Short Circuit/Over Voltage/Over CurrentOver Temperature• MTBF > 100,000 hours MODEL No.MAX. OUTPUT POWER(W)INPUT VOLTAGE (Vo)OUTPUT VOLTAGE (Vo)LOADLOAD REGULATIONLINE REGULATIONRIPPLE &  NOISEMIN. (Io)MAX. (Io)HD107075W11V -- 16V15V -- 24V0A4A±5%±1%200mV NOTE:1: Ripple & Noise is mEAsured by using 20MHz bandwidth limited oscilloscope and terminated EAch output  with  a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.2: Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.3: Max. Power (W) >=Vo x IoElectrical SpecificationINPUT• Input Range                  11V -- 16VDC• Input Current                 7A Max.• Efficiency                       86% Min. with nominal input• Turn On Time
