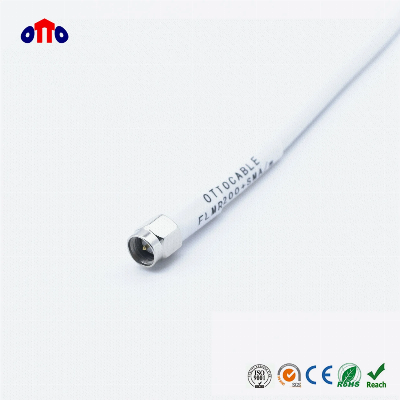

Coaxial Jumper Cable LMR200 with SMA Plug for Antennas

Coaxial Jumper Cable LMR200 with SMA Plug for AntennasApplication:• Mobile Antennas• Wireless Communication Syestems• WLL, GPS, WLAN,WiMax• Cellphone Signal Repeaters• Signal transmissionFeatures:• 50 Ohm• Low Loss RF Cable• 0 - 6GHz• Excellent performance at high frequency• Drop-in replacement for RG58.• REACH/RoHS compliant, CE certified.• OEM/ODMAssemblies:• N, TNC, BNC, SMA......• Customized Cable length / color/ roll size/ packing• Various colors of Heat shrinkable tubeConstructionItemMaterialDiameter(mm)Inner ConductorDielectricFirst ShieldSecond ShieldJacketBare Copper / Copper Clad SteelFoam PEBonded Aluminum FoilTinned Copper Wire BraidPVC/PE/LSZH1.122.953.073.664.95Electrical CharacteristicsImpedance (Ω)Capacitance (pF/m)Velocity of Propagation (%)Return LossScreening Effectiveness(dB)VSWRInstallation Temp(ºC)Operating Temp(ºC)50±383.383≥20≥90≤1.2-25 to +70-25 to +70Attenuation (@20ºC)Frequency(MHz)Max Attenuation(dB/100m)150220450900150018002000250014.116.923.833.643.448.051.057.6/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
