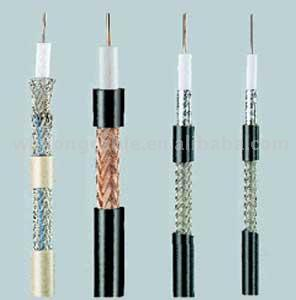

RG6 Coaxial Cable with CE Approval

Basic Info.Model NO. RG6 Application Coaxial Cable Conductor MaterialBC/CCS/CCA/TC/CU/CCAGCover Material PVC Type Rg Series Certification CE Cable Inner ConductorPure Copper ; Copper Clad Steel;Copper Clad AlCable Sheath Material PVC Max Dia of Cable6.8mmInsulation Thickness0.64 MmCable Core Number1Tensile Strength1 MTrademarklinanSpecification CE OriginZhejiangProduct Description Coaxial cableRG61) Jacket: 6.0mm PVC2) Specification: 1.0CCS+4.8FPE+FOIL+64*0.12AL-MG+6.8MMPVC3) OEM and customers designation are welcomeIs a very low loss cable, it is makes medium foam by gas injection, form small pores closed each other, the medium is hard ageing, hard be affected with damp. Cable inner conductor is pure copper wire, copper clad steel, copper clad aluminum, Outer conductor is aluminum-plastic composite belt and tin plated copper wire, bare copper wire, aluminum-magnesium alloy wire weaving, medium and inner conductor firmly with each other, when the temperature changes or cable tension pressure, mass media between conductor and mutual movement will not occur. Attenuation of the cable is smaller than with the size of the other radio frequency cable, it is used for CATV closed-circuit television system, high frequency and ultra high frequency signal transmission, can also be used for data transmission network for data transmission.
