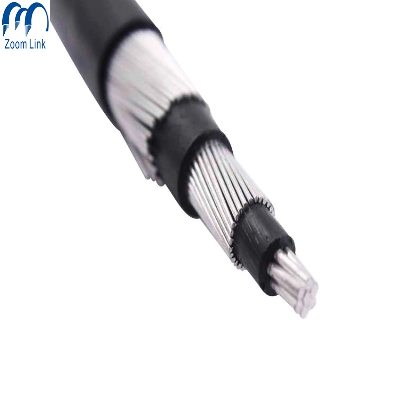

Aluminum Concentric Neutral Cable XLPE Concentric Cable Coaxial Cable

Product DescriptionAluminum Concentric Neutral Cable XLPE Concentric Cable coaxial cable1.  STANDARDThe concentric conductors of copper and aluminum, is entirely consistent with the rules ASTM D 790, D 1248, D 2655, D 2656, UL 854, UL 44 .2.  CHARACTERISTICS OF THE COPPER  AND ALUMINUM CONDUCTORSThe concentric conductors of copper and aluminum, is entirely consistent with the rules ASTM D 790, D 1248, D 2655, D 2656, UL 854, UL 44,ASTM B 801, ASTM B800 .CONSTRUCTIVE CHARACTERISTICS Each material used in the conductor will be compatible with all other materials used in the manufacture of concentric conductor. Concentric conductor consists of one or two conductors which in turn are coated with a bare conductor distributed helically around the conductors. According to these configurations will have a phase and outer concentric neutral (bipolar), or two phases and these external neutral (tripolar) Section of all conductors that form the concentric conductor of both phases as the concentric neutral is the same. Conductor: The materials used in the manufacture of concentric aluminum conductors formed by wires  aluminum 8000 serises , or 1350 Al, or Copper shall comply with the provisions of ASTM  standard .  Isolation: Each phase conductor will contain an insulating layer of XLPE for a temperature of 90 C. in the bipolar cables, over the insulating layer will be the braided neutral conductor helically with a passage between 8 and 16 times the outer diameter. In the tripolar cables over the isolation of each phase will have a PVC insulation filling in the joint of both cables and over this will be placed the neutral conductor.  Will be put over the concentric neutral conductor a tape and over this outer layer of PVC. Must ensure the tightness of the set plus adequate resistance to ultraviolet rays (UV),Covering the entire concentric conductor will be placed a PVC coating. CONCENTRIC CONDUCTORS  ALFEATURES#8 x 2#8 x 3#6 x 3#4 x 3#2 x 3PhaseMaterialAlAlAlAlAlNo. Of wires 77777Wire diameter  (m.m.)1,2341,2341,5551,9612,473phase diameter (m.m.)3.713.714.675.897.42Phase area  (mm²)8,3678,36713.321.1533.62Nominal electrical resistance  C.C. a 20°C Ohm/Km.3.433.432.161.360.855Nominal weight Kg/Km22.6922.6924757.3791.21Ampacity  (A)45456075100Phase Insulation thickness (m.m.) (PE)1.141.141.141.141.14Diameter over insulation5.995.996.958.179.7NeutralNo. Of wires3737376565Wire diameter  (m.m.)0.5360.5360.6760.6430.823Area of Neutral (mm²)8.3498.34913.28021.10734.578  Interior Nylon tape thickness (mm²)0.05Exterior Thickness for PE cover (mm²)1.141.141.141.141.14Detailed Photos Packaging & ShippingPacking:  wooden drum,iron-wooden drum,Woven Bag wrappingShipping: transport by seaPort: QingdaoAs the customers requirementsWoven Bag wrapping(soft packing/rolls) : Advantages: low price, light weight and space saving.Wooden Drum Packing Details:The wooden drum will be fumigated.Wooden Steel Drum: This wooden-steel drum is suitable for cables with an outer diameter of more than 30mm.  FAQ1.Are you a manufacturer or trading company?We are a professional manufacturer.We can control your order from the first beginning to the last.Welcome to visit us.We'll pick you up in Zhengzhou2. How can I get a sample to test your quality?The samples are free for you.New clients are expected to pay for the courier cost.3.What's your Minimum Order Quantity?Normally 1000m.How ever the cable is very heavy.You'd better order a suitable quantity to avoid the high freight.Sea transportation is the best option.4.Can I get a discount?It depends on your quantity,We can make a discount and afford the freight.Pls kindly contact us.5. Does your company accept OEM production?Yes, could print your company name we even custom the quality card to promote your company.Certifications Company Profile  PLEASE SEND  YOUR ENQUIRY /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
