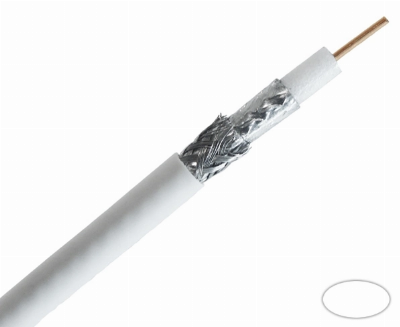

JIS Series 5c-2V Coaxial Cable

 JIS Series 5c-2v coaxial cableNormal specification:Construction Parameters:Inner Conductor0.040"/1.02mm/18AWG CCSDielectric0.180"/4.57mm Foamed PEShield 10.187"/4.75mm Bonded Aluminum PolyproyleneShield 2Aluminum braid wire 95% coverageJacket0.268"±0.006"/6.81±0.15mm PVCJacket Thickness0.030"/0.76mmApplicationFor Use in Longer CATV Run LengthsElectrical Characteristics:   Inner Conductor Resistance The Max. at 20ºC shall be <  87 Ω/km 26.6Ω/1000ftCapacitance52 ±3 pF/m         15.9 ±0.9 pF/ft Impedance75 ± 3 ΩReturn lossbetween 5 and 1000MHz: > 22dBVelocity of Propagation0.85Sparker Test (VAC)4 Mechanical and Envrionmental PropertiesCable bend radius10 times the cable diameterOperating Temp Range-20 ºC to 60ºCCable diamensions0.268"±0.006"/6.81±0.15mm PVC Attenuation(20ºC):Frequency (MHZ)Max Attenuation(dB/100ft)Max Attenuation (dB/100m)50.581.90551.605.25831.956.401872.859.352113.0510.002503.3010.823003.5511.643503.8512.634004.1513.614504.4014.435004.6615.295504.9016.086005.1016.737505.6518.548656.1020.0110006.5521.49 Order Informations:MarkingRG6U CCS CATV COAXIAL CABLE ×××M/FTPackage300M/Wooden SpoolDelivery timeNormally 25 days after received the deposit.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
