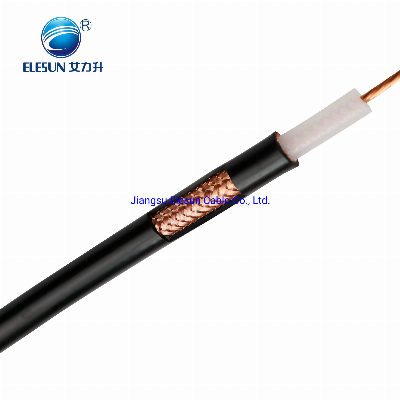

Manufacture Rg8u 50ohm Low Loss Coaxial Cable

Manufacture RG8U 50ohm low loss Coaxial Cable  1.Detailed Description 1. Inner Conductor: CU 2. Dielectric: Foam/Solid PE 3. Shield: Bonded, Non-bonded, Single, Double 4. Braid wire material: CU, AL-Mg, TC 5. Braid wire diameter: 0.12mm, 0.15mm, 0.16mm 6. Braid net: 96, 128 and more  7. Braid coverage:  80%, 90% and more  8. Jacket: PE/PVC 9. Jacket degree: 70,75 10. Customized requirement welcomed.  RG8/U coaxial cable specificationsMaterial of Inner ConductorBare CopperStructure of Inner Conductor7/0.75mmMaterial of Insulation Solid PEDiameter of Insulation7.25mmMaterial of Braiding(Double Shielding)Bare Copper Structure of Braiding(Double Shielding)144*0.15mmMaterial of Jacket PVCDiameter of Jacket10.20mmWorking temp-40ºC/80ºCImpedance50Ω±2Voltage1500VWeight 156KG/KM2.Electrical SpecificationsCharacteristic Impedance(Ohm)75Nominal Velocity of Propagation (%)85Nominal Capacitance(pF/m)50Sparker Test(VAC)4000SRL(dB, min)203.ApplicationThe RG8 coaxial cable is a low-loss coated cable that is noncontaminating. Coax Cables transmit radio signals, video signals, measurement signals and data signals and are often used in home entertainment systems. The RG8 is generally considered the superior coax cable because it is low-loss and consists of seven braided strands of bare copper.(1) CATV-community antenna television. (2) CCTV-closed-circuit television. (3) DBS-direct broadcasting satellite.4. Packing1) Packing Lengths: 100/roll, 200 m/roll, 300m/roll. 305m/roll2) Inner Packing: Wooden reel, plastic reel, and paper reel3) Outer Packing: Carton box, pull out box, pallet available4) Other packing available according to clients' request/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
