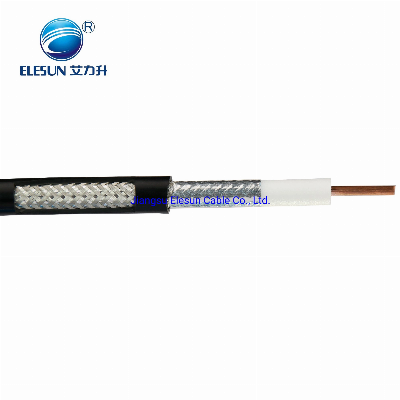

Manufacture 75ohm CCTV Low Loss Cable RG6 for Communication

Manufacture 75ohm CCTV Low Loss Cable RG6 for CommunicationDescription:. Standard Mil-c-17 .Equivalent to :SYWV-75-5(GB Standard). Insulation Material: Foam PE. Impedance:75Ω±3. Color: Black, WhiteTypical Application:RG-6/U is a specific type of coaxial cable, It is widely used in security system or CATV for transmission of a video and radio signals . The  characteristic impedance of RG6 is  75 ohms, and the capacitance is around 67F/m.  RG (for radio guide) was originally a unit indicator for bulk radio frequency (RF) cable in the U.S. military's Joint Electronics Type Designation System. The suffix /U means for general utility use. Best Feature: Lower signal loss than smaller diameter cable such as RG179,RG59A/U,RG59B/UDelivery: Normally3~5 days for samples,it will depend on when you place the order and at that time if our production is busy or free. After all the sample confirmed, 7~15 days for the mass production.However,we'll do our best to speed up with not low the quality.   RG6/U coaxial cable specificationsMaterial of Inner ConductorBare Copper, CCSStructure of Inner Conductor1/1.02mmMaterial of Insulation Foam PEDiameter of Insulation4.57mm1st ShieldingAluminum FoilMaterial of Braiding(2nd Shielding)CCA,  Bare Copper, Tinned CopperStructure of Braiding96*0.15mmMaterial of Jacket PVCDiameter of Jacket7.10mmWorking temp-40ºC/80ºCImpedance75Ω±2  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
