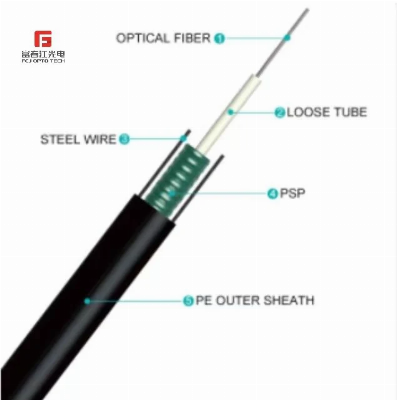

FCJ factory Computer Cable/Communication Cable Outdoor GYXTW Optical CableDescriptionThe fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.Characteristics· Good mechanical and temperature performance· High strength loose tube that is hydrolysis resistant· Special tube filling compound ensure a critical protection of fiber· Crush resistance and flexibility· PSP enhancing moisture-proof· Two parallel steel wires ensure tensile strength· Small diameter, light weight and friendly installation· Long delivery lengthStandardsGYXTW cable complies with Standard YD/T 769-2003.Technical ParametersCable TypeFiber CountCable Diameter(mm)Cable Weight kg/kmTensile Strength Long/Short Term NCrush Resistance Long/Short Term N/100mmBending Radius Static/DynamicmmGYXS/GYXTW-2~122~1210.0105600/1500300/100010D/20DGYXS/GY XTW-2~122~1210.61241000/30001000/300010D/20DGYXS/GY XTW-14~2414~2412.51491000/30001000/300010D/20DGYXS/GY XTW-26~3626~3614.01901000/30001000/300010D/20DGYXS/GY XTW-38~4838~4815.02161000/30001000/300010D/20DStorage/Operating Temperature : -40ºC to + 70ºCOptical Characteristics G.652G.65550/125μm62.5/125μmAttenuation(+20ºC)@850nm ≤3.0 dB/km≤3.0 dB/km@1300nm ≤1.0 dB/km≤1.0 dB/km@1310nm≤0.36 dB/km≤0.40 dB/km @1550nm≤0.22 dB/km≤0.23dB/km Bandwidth (Class A)@850nm ≥500 MHz·km≥200 MHz·km@1300nm ≥1000 MHz·km≥600 MHz·kmNumerical Aperture 0.200±0.015NA0.275±0.015NACable Cut-off Wavelength≤1260nm≤1480nm /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
