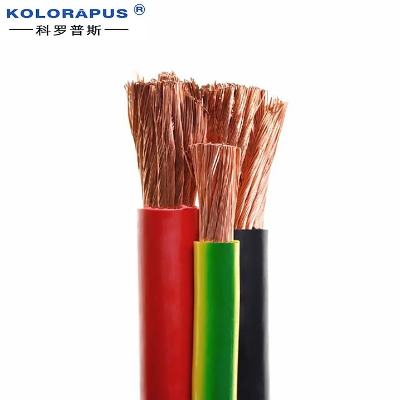

Rvv Rvvb Bvr Flexible Copper Conductor PVC Coated Electric Wire Cable

Product DescriptionConstruction :1.Conductor:H05V-U/H07V-U  Bare copper wire(solid)  class1                     H07V- R  Bare copper multi wire(stranded)  class22.Insulation:PVC Compound3.Insulation Color: Red/Balck/Yellow/Green/Bule/ Yellow&GreenTechical Data :Fixed installed: -30ºC  up to +70ºC     At short circuit of max.5s  up to 160ºC  Nominal Voltage: H05V-U    300/500V                            H07V-U/R  450/750VMin inner bending radius:4D(D=Outdiameter)Behaviour in fire:Flame retardant cable acc.to IEC60332-1             Application:Insulated conductor(H05V-U/ H07V-U/R) is used for laying in electric-installation tubes, under and on plaster installation in dry rooms and in closed installation conduits. Direct laying in cable guides is not permitted. Also applied for internal wiring of distribution and switching boxes equipment, same as for protective laying for lighting of nominal voltage up to 1000 V alternating current, or up to 750 V direct current against earth. Product Parameters TypeNo. of cores×Nom. CrossSectionmm2No ./Dia.of strandmmNom.Thicknessof insulationmmNom.thicknessof sheathmmAverage O.D.mmMax. DC conductorresistance at 20ºCΩ/kmMin. Insulating resistanceat 70ºCMΩ·km     Min.Max.Copper coreTinned copper core 60227 IEC10(BVV)300/500V2×1.51/1.370.71.27.610.012.112.20.011 2×1.57/0.520.71.27.810.512.112.20.01 3×1.51/1.370.71.28.010.512.112.20.011 3×1.57/0.520.71.28.211.012.112.20.01 4×1.51/1.370.71.28.611.512.112.20.011 4×1.57/0.520.71.29.012.012.112.20.01 5×1.51/1.370.71.29.412.012.112.20.011 5×1.57/0.520.71.29.812.512.112.20.01 2×2.51/1.760.81.28.611.57.417.560.01 2×2.57/0.680.81.29.012.07.417.560.009 3×2.51/1.760.81.29.212.07.417.560.01 3×2.57/0.680.81.29.412.57.417.560.009 4×2.51/1.760.81.210.013.07.417.560.01 4×2.57/0.680.81.210.013.57.417.560.009 5×2.51/1.760.81.211.014.07.417.560.01 5×2.57/0.680.81.211.014.57.417.560.009 2×41/2.240.81.29.612.54.614.70.0085 2×47/0.850.81.210.013.04.614.70.0077 3×41/2.240.81.210.013.04.614.70.0085 3×47/0.850.81.210.513.54.614.70.007760227IEC10(BVV)300/500V4×41/2.240.81.411.514.54.614.70.0085 4×47/0.850.81.412.015.04.614.70.0077 5×41/2.240.81.412.516.04.614.70.0085 5×47/0.850.81.413.017.04.614.70.0077 2×61/2.730.81.210.513.53.083.110.007 2×67/1.040.81.211.014.03.083.110.0065 3×61/2.730.81.411.514.53.083.110.007 3×67/1.040.81.412.015.53.083.110.0065 4×61/2.730.81.412.516.03.083.110.007 4×67/1.040.81.413.017.03.083.110.0065 5×61/2.730.81.413.517.53.083.110.007 5×67/1.040.81.414.518.53.083.110.0065 2×107/1.331.01.413.517.51.831.840.0065 3×107/1.331.01.414.519.01.831.840.0065 4×107/1.331.01.416.020.51.831.840.0065 5×107/1.331.01.417.522.01.831.840.0065 2×167/1.701.01.415.520.01.151.160.0052 3×167/1.701.01.416.521.51.151.160.0052 4×167/1.701.01.418.023.51.151.160.0052 5×167/1.701.01.620.526.01.151.160.0052 2×257/2.121.21.418.524.00.7270.7340.005 3×257/2.121.21.420.526.00.7270.7340.005 4×257/2.121.21.622.528.50.7270.7340.005 5×257/2.121.21.624.531.50.7270.7340.005 2×357/2.501.21.621.027.50.5240.5290.0044 3×357/2.501.21.622.029.00.5240.5290.0044 4×357/2.501.21.624.532.00.5240.5290.0044 5×357/2.501.21.627.035.00.5240.5290.0044 TypeNom.crosssectionmm2No ./Dia. ofStrandmmNom.Thicknessof insulationmmAverage OD (Max.)mmMax. DC conductorresistance at 20ºCΩ/kmMin. Insulating resistanceat 70ºCMΩ·km     Copper coreTinned copper core 60227 IEC 01(BV) 450/750V1.51/1.370.73.312.112.20.011 1.57/0.520.73.412.112.20.010 2.51/1.760.83.97.417.560.010 2.57/0.680.84.27.417.560.009 41/2.240.84.44.614.700.0085 47/0.850.84.84.614.700.0077 61/2.730.84.93.083.110.0070 67/1.040.85.43.083.110.0065 107/1.331.06.81.831.840.0065 167/1.701.08.01.151.160.0050 257/2.121.29.80.7270.7340.0050 357/2.501.211.00.5240.5290.0040 5019/1.781.413.00.3870.3910.0045 7018/2.121.415.00.2680.2700.0035 9519/2.501.617.00.1930.1950.0035 12037/2.001.619.00.1530.1540.003260227 IEC 01(BV) 450/750V15037/2.241.821.00.1240.1260.0032 18537/2.502.023.50.09910.1000.0032 24061/2.242.226.50.07540.07620.0032 30061/2.502.429.50.06010.06070.0030 40061/2.852.633.50.04700.04750.0028 60227 IEC 07(BV-90)       300/500V0.51/0.800.62.436.036.70.015 0.751/0.970.62.624.524.80.013 1.01/1.130.62.818.118.20.012 1.51/1.370.73.312.112.20.011 2.51/1.760.83.97.417.560.009Detail photoFactory picture         Certifications Company ProfileKolorapus is a factory direct supplier specializing in the research and development of wires and cables and supporting equipment. Cables, flexible towline cables, elevator flat cables, various special cables and related accessories, such as modules, panels, distribution frames, jumpers, pigtails, couplers, photoelectric converters, cabinets, bridges, etc., products It has passed CCC, ROHS, CE and other certifications, and provided a tripartite test report issued by the national authoritative testing and certification center. The product performance fully complies with domestic and foreign and industry-related standards.The company's management system has passed GB/T19001-2016/ISO9001:2015 quality manage
