Double Shield 50 Ohm Coaxial Cable (RG142)

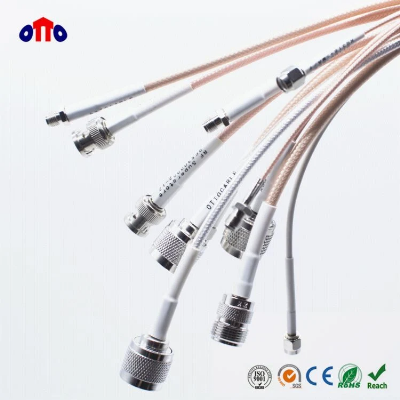

50 Ohm Coaxial Cable RG142 Double Shield This 50 Ohm RG142 coaxial cable can be equipped with varied connectors,such asSMA,SMB,MXC,N,BNC, TNC connectors.These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM  and other communication systems. Features 1).50 Ohm data signal transmission; 2).The inner conductor could be stranded or solid; 3).Special insulation materials,providing good electrical property and welding performance; 4).Small diameter is ideal for tight fit applications; 5).Customized cable color , winding and connector, meet your different requirements; 6).RoHS compliant;   RG142 Coaxial CableConstructionItemMaterialDiameter(mm)Inner ConductorSliver Plated Copper Clad Steel0.94Dielectric PTFE2.95First ShieldSilver Plated Copper Braid3.6Second ShieldSilver Plated Copper Braid4.2JacketFEP4.95 Electrical CharacteristicsAttenuation @20ºC (dB/100M)Impedance(Ω)50@200MHz17.7Velocity of Propagation(%)70@400MHz25.9Max Operating Frequency (MHz)3000@700MHz35.1Max Operating Voltage(VRMS)1000@900MHz40.4Operating Temperature(ºC)-55 to +200@1000MHz43.0----------@3000MHz79.4    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
