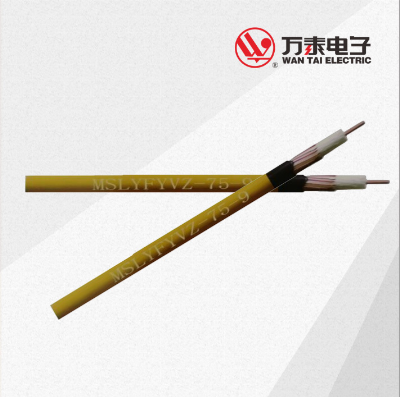

Mining Flame-Retardant Communication Cable Leakage Coaxial Cable

MSLYFYVZ-75-9Coal mine flame retardant leakage coaxial cableApplicationMSLYFVZ-75-9 type coal mine flame retardant leakage coaxial cable is a special coaxial cable, its outer shielding layer is in the form of longitudinal parallel winding, The insulation material adopts the fine closed microbubble structure of physical foaming polyethylene, its characteristic impedance, standing wave coefficient, attenuation and other transmission parameters are uniform and stable, using double sheath,more effectively resist the erosion of cable by moisture in wet environment, long service life and high reliability. The cable has the coal safety mark issued by the national appraisal department.Wantai as a professional manufacturer for Mine explosion-proof electricals, main product: frequency converter, starter, feed switch, circuit breakers, PMS motor/drum, dust suppressor etc.If you have any needs, please contact usTechnical ParametersInner conductor diameter2.15mmExternal conductor diameter0.35mm×pcsWeightCustom length according to user needsOutside drawingsee belowcharacteristic impedance75±3Ωattenuation constant≤40dB/kmcoupler loss≤80±10dB/Kmvoltage standing-wave ratio≤1.2Conductor DC Resistance≤5.25Ω/km  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
