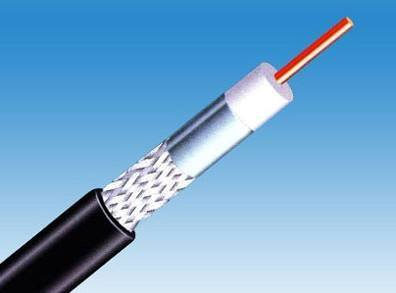

High Quality Rg58 Coaxial Cable

High Quality Rg58 Coaxial Cable Specificationscoaxial cable-RG58: 2.brainding with CU or AL-mg. 3.CU foil or AL foil. 4.PVC jacket. 5.fine copper wire,copper wire  Product DescriptionCable(RG58 ): Specifications: 1) 19X0.18mmTinned Copperor or Copper+2.95mmSolid PE insulation + 95% Tinned Copper or Copper Braiding+4.95mmPVC 2) Customers' specifications are welcomed  Note1) Center conductor:Tinned Copper, Bare Copper, and Copper Clad Steel available; 2) Al-foil:Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, And double non-bonded Al-foil are available; 3) Braiding wire:AL, Bare Copper and Tinned Copper available; 4) Braiding wire diameter:0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available; 5) Braiding net:80, 96, 120,128 ,144 and more available; 6) Braiding coverage:Between 80- 97% available; 7) PVC jacket of Flame retardant ,UV, or UL available. CharacteristicsImpedance:50+/-2 Ohm Velocity of Propagation:66% Capacitance:93.5pF/m Return Loss:23dB min Attenuation:[@68 F.(20 C) ]  dB/100meters 30MHz:6.30dB                1500MHz:45.60dB 50MHz:8.10dB                1800MHz:50.10dB 150MHz:14.10dB            2000MHz:53.00dB 220MHz:17.10dB            2500MHz:59.50dB 450MHz:24.60dB            5800MHZ:93.10dB 900MHz:35.00dBLuxing Cable Factory Mainly Produce 300/500V 450/750V electrical wire AAC conductor 600/1000V PVC insulated cableAAAC conductor 600/1000V XLPE insulated cableACSR conductor 1.8/3KV to 26/35KV power cable OPGW Armored underground cableABC cable Control cable and instrumentation cables Rubber cableFactory Production Base Customer Visiting Why Choose us?1. Advanced process equipment2. Competitive price and high quality3. Excellent after-sale service4. Attractive design and various styles5. Powerful technology R&D team6. Strict quality assurance system and perfect testing means7. Advanced process equipment8. Delivery on time9. Have a good reputation in the domestic and overseas. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
