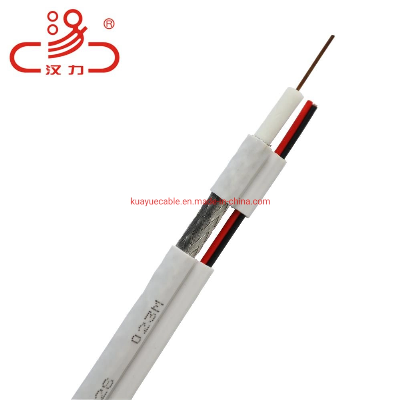

Product DescriptionCoaxial cable RG59 add 2c power cable wire Coaxial cableBC: Bare Copper CCS: Copper Clad SteelTC: Tinned Copper CCA: Copper Clad Aluminum Specifications:1) RG59 Coaxial Cable 75ohm Double shield(standard)0.81mm BC/CCS Conductor + 3.77mm PE Foam + Al Foil + CCA/BC/Alloy Braiding + 6.0mm PVC Jacket 2) RG59 Coaxial Cable 75ohm Tri-shield0.81mm BC/CCS Conductor + 3.7mm PE Foam + Bonded Al Foil + CCA/BC/Alloy Braiding + Al Foil + 6.1mm PVC Jacket 3) RG59 Coaxial Cable 75ohm Quad shielded0.81mm BC Conductor + 3.7mm PE Foam + Bonded-Al Foil + CCA/BC/Alloy Braiding + A Foil + CCA/BC/Alloy Braiding + 6.3mm PVC Jacket 4) Customers'specifications are welcomed Product Description:1) Center conductor:BC,TC,CCA,CCS2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double non-bonded Al-foil are available3) Braiding wire:Al,BC,,TC,CCA,CCS Available4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available5) Braiding net:32,48,64,72,80,96,120,128,144 and more available6) Braiding coverage:Between 30-97%7) PVC jacket of flame retardant,UL AvailableApplication: Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable for satellite systems where lower attenuation required. Packing: 1) Packing Lengths:100/roll,200m/roll,300m/roll.305m/roll2) Inner Packing:Wooden reel,plastic reel,and paper reel3) Outer Packing:Carton box,pull out box,pallet available4) Other packing available according to clients'request Product ParametersElectrical characteristics@ Frequency MHzdB/100 ft. (MAX.)dB/100 meters (MAX.)5 MHz0.58 dB2.65 dB55 MHz1.60 dB5.25 dB83 MHz1.95 dB6.40 dB187 MHz2.85 dB9.35 dB211 MHz3.05 dB10.00 dB250 MHz3.30 dB10.82 dB300 MHz3.55 dB11.64 dB350 MHz3.85 dB12.63 dB400 MHz4.15 dB13.61 dB450 MHz4.40 dB14.43 dB500 MHz4.66 dB15.29 dB550 MHz4.90 dB16.08 dB600 MHz5.10 dB16.73 dB750 MHz5.65 dB18.54 dB865 MHz6.10 dB20.01 dB1000 MHz6.55 dB21.49 dBDetailed Photos Company ProfileABOUT USZhejiang Hanli Cable Co., Ltd. is a professional manufacturer of tv cables and cable television network equipment. It has more than 300 employees, including 100 engineers with college degree or above, and more than 50 directly engaged in high-tech and new product research and development. And has a production site of more than 38,000 square meters, 12 domestic and imported production equipment, and a number of advanced cable testingequipment. The company's leading products include SYWV(Y)-75 series physical high foaming RF coaxial cableRG series access network coaxial cableSYWLY-75 series aluminum tube cable,digital communication cable and digital monitoring lineetc sold abroad. The company's technology center mainly develops new productsnew processes and new technologies, and has successively developed more than 30 provincial-level new products of which 26 have obtained national patents,and ten products have been identified as high-tech products in Zhejiang Province. This project was identified as a National Torch Program project. In the futurethe company will continue to develop new products and new processes to meet the high-tech and high-standard demands of the market.Our AdvantagesWelcome to visit our factory and get our samples. Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you. Choose us, won't make you disappointed:1.15years manufactory experience 2.OEM/ODM available3.Steady product quality4.Strict quality control5.Strictly conform to CE,ROHS,Iso90016.Quick delivery time(20ft,25days) FAQ1.Can I have some samples for testing quality?A1.Yes, you can buy some samples of any our products for testing quality and market.2.What is delivery time if we place order?A2. It depends on order quanities. Usually,we can deliver goods within 15 days for small order. For more QTY, Let's confirm when you place official order.3.Do you accept OEM/ODM?A3. We support OEM/ODM service.pls don't hesitate to tell us your details. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
