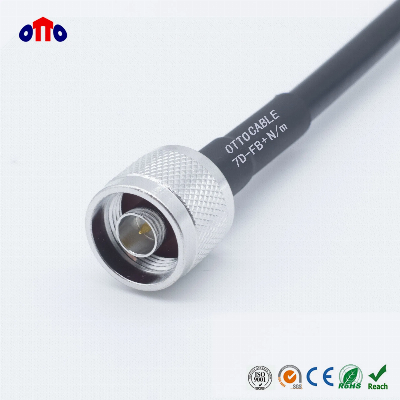

50 Ohm RF Coaxial Cable (7D-BC-TCCA)

7D-FBOverview This is a JIS foam coaxial cable with solid inner conductor. It has a good attenuation and shielding effectiveness, and has been widely applied to radio transmission,base radio antenna station and other communication systems.   Features ·         50 Ohm data signal transmission; ·         The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness; ·         Excellent performance in high frequency,VSWR stability; ·         Similar to the LMR400 coaxial cable; ·         RoHS compliant; Assemblies & Application These 50 Ohm 7D-FB coaxial cables can be fixed kinds of connectors,such as SMA,N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.                                   Communications RF Coax Cable   7D-BC-TCCA   ConstructionItemMaterialDiameter(mm)RemarksInner ConductorDielectricFirst ShieldSecond ShieldJacketBare CopperFoam PEBonded Aluminum FoilTCCA Wire BraidPVC/PE/LSZH2.607.307.408.009.80Per customer's requirements:The second shield could be 112,128 or 144 TCCA wires braiding;Jacket could be PVC,PE or LSZH; Electrical CharacteristicsImpedance (Ω)Capacitance (pF/m)Velocity of Propagation (%)Dielectric strength(kV)V.S.W.RReturn LossScreening Effectiveness(db)Min. Bending Radius (mm)Operating Temperature(0C)50±382±282.01.6≤1.3≥20≥9045.0-25 to +70 Attenuation (@200C)Frequency(MHz)Max Attenuation(dB/100m)1200150018001900200022002500300016.819.221.422.223.223.925.629.5   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
