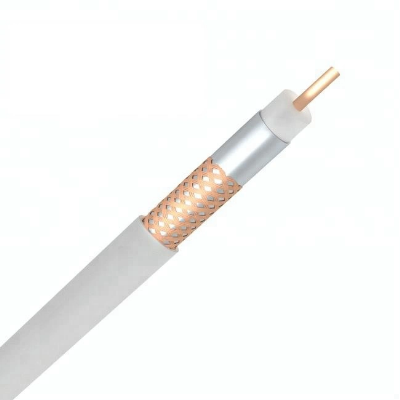

CT100 Fpe PVC 75 Ohm CATV Coaxial Cable

CT100 FPE PVC 75 Ohm CATV coaxial Cable Used in low attenuation requied systems such as indoor CATV, CCTV distribution and SATV satallite systems as connection cable.CT100 FPE PVC75 Ohm CATV coaxial CableConstruction Parameters:Inner Conductor0.04"/1.00mm/18AWG BCDielectric4.6mm FPEShield 14.75mm overlapped copper foilShield 216*4*0.12mm bare copper braid                                    wire 55% coverage  Jacket6.7±0.15mm PVCJacket Thickness0.030"/0.76mmApplicationFor Use in Longer CATV Run LengthsElectrical Characteristics:Inner Conductor Resistance The Max. at 20ºC shall be <  21.9 Ω/km                                                               6.68Ω/1000ftCapacitance52 ±3 pF/m         15.9 ±0.9 pF/ft Impedance75 ± 3 ΩReturn lossbetween 5 and 1000MHz: > 22dBVelocity of Propagation0.85Sparker Test (VAC)4 Mechanical and Envrionmental PropertiesCable bend radius10 times the cable diameterOperating Temp Range-20 ºC to 60ºCCable diamensions6.7±0.15mm PVC Cross Section Attenuation(20ºC):Frequency (MHZ)Max Attenuation(dB/100ft)Max Attenuation (dB/100m)5 1.6050 4.60100 6.50200 9.50460 15.00860 19.501000 21.501750 29.002150 32.50 Order Informations:MarkingCT100 FPE PVC CATV COAXIAL CABLE ×××M/FTPackageInquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …Delivery timeNormally 25 days after received the deposit.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
