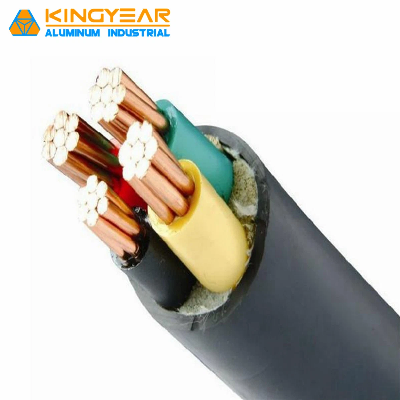

China Electrical Price XLPE/PVC Insulated Armoured Electric Power Cable

China Electrical Price XLPE/PVC Insulated Armoured Electric Power CableApplications     PVC insulated power cable is suitable for laying fixed in power transmission and distribution lines with A.C. 50HZ and rated voltage of 0.6/1kV.     XLPE insulated power cable has a number of advantages compared with paper insulated and PVC insulated cables. XLPE cable has high electric property, mechanical property, heat aging performance, environmental stress crack resistance, chemical corrosion resistance, and it also has simple structure, convenient operation and it is not restricted by laying in large difference of level. It can be applied in high temperature of 90 degree for a long time.Standard IEC 60502,  IEC60332,  IEC 60754Specification1). Rated Voltage, No. of Core and Range of Sectional AreaRated voltage (kv)Sectional area (mm2)No. of core1st class0.6/11.8/33.6/66/108.7/1512/2018/3021/352nd class1/13/36/68.7/1012/1518/20-26/351 Core 1.5-80025-80025-120025-120035-120050-120050-120050-12002 Core 1.5-18525-185      3 Core 1.5-40025-40025-40025-40035-40050-40050-40050-4004 Core 2.5-40025-400      5 Core 2.5-40025-400       2).  DC resistance: conductor resistance of finished cable at 20ºC per kilometer is not more than the following values.Nominal section area (mm2)1.52.54610162535507095120150185240300400500630800Copper core12.17.414.613.081.831.150.7270.5240.3870.2680.1930.1530.1240.0990.07540.06010.0470.03660.02830.0221Aluminum core18.112.17.414.613.081.911.20.8680.6410.4430.320.2530.2060.1640.1250.10.7780.06050.04690.0367 3). Voltage Test and Partial Discharge TestRate voltage Uo (kv)Item0.6/11.8/33.6/66/6 6/108.7/10 8.7/1512/2018/20 18/3021/3526/35VoltageTest voltage3.56.512.52130.5426373.591Test time555555555Partial discharge testTest voltage--6.210.415.120.831.136.345Discharge capacity--10101010101010Production processPackagePackage in Export Wooden or Steel Wooden or Steel DrumsTesting  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
