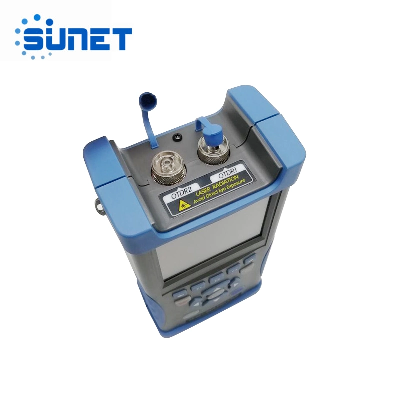

High Quality FTTH Good Price Fiber Optic Sm OTDR/Pon OTDR

Description:Hand-held Optical Time Domain Reflectometer Series is a newly hand-held and intelligent communication measuring device in accordance with the test of Optical fiber and Communication System. The product is used to measure the parameters like optical fibers, length of the optical fiber, loss, following quality and the like. It can quickly and accurately position the case point and fault point of the optical fiber link. It can be widely used in the engineering construction, route maintenance and urgent repair of the Optical fiber and Communication System. It can also be used in optical fiber and optical cable development as well as production measurement. The product can effectively do help to the installation and construction of the optical fiber network, the following speedy and effective maintenance and the troubleshooting test.OTDR is sturdy and durable with a novel and attractive appearance. The most succinct operation interface with a simple and intuitive style is specially designed for the domestic and abroad users. The dual operation mode of press key and touch screen effectively simplifies the application of the users. You can obtain the test result by the one-click analysis and the events will appear on the main interface in a list form with the information of event number, type, location (distance), loss, reflex, gradient of the events (attenuation) and total loss. Intelligent power management mode is employed to the machine. The working duration of the machine can be more than 10 hours with the high-capacity lithium battery.Main features:The novel and beautiful structural design of the appearance.The most convenient operation mode in the industry is as simple as available.ultra-short event dead zone can test the wire jumper of the optical fiber.It can test the circuit with light and give an alarm, avoiding existence of the equipment whose signal light is damaged in the optical fiber tested.High-power visible laser fault location function is equipped inside.USB interface can transfer the documents and make the report forms fast.Universal light output interface which is easy to be replaced enables a variety of interface tests.The working duration of more than 8 hours enables long-time field construction.Multiple choices of wavelengths and dynamic ranges best meet the requirement of the users.Highly intelligent analytical software can accurately recognize the melting point of the fault. The junctor may bend.ModelItemOTDROptical fiber typeSingle-modeCentral wavelength(nm) 1310/1550 Maximum  dynamic range(dB)28/26Event dead zone(m)1Attenuation dead zone(m)10Display screen type3.5 inch color LCD, operation of the touch screenOptical interfaceFC/UPC (can be interchanged to SC or ST)Test range (km)                    70km~80kmPulse width(ns)10,30,50,100,275,500,1000,5000,10000Ranging accuracy(m)± (1m+ sample interval +0.005%×distance)Attenuation measurement (dB/dB)±0.05Reflection measurement (dB)±5Data storage≥800 testing curves Communication interfaceUSB     Visible red light sourceOutput power≥2mWTesting distance≥5km         Environmental adaptabilityPower supply modeAC/DC adapter: alternating current:100V~240V (1.8A), 50/60Hz              direct current: 19V±1V(2A)Internal lithium ion battery groups: 8.4V,5200mAhWorking duration of the battery≥8hoursWorking temperature-5ºC~50ºCPreserve temperature-20ºC~70ºCWeight≤1kgVolume 208mm×110mm×56mmStandard ConfigurationNumberNameQuantity1OTDR12Power line13AC/DC power adapter14Product qualification certificate15User manual16Disk (including simulation analysis software)17Special bag for the instruments 1Q1: How can i get your catalogue and price list?A1: Please let us know your email or contactus from website directly for our catalogue and price list   Q2: Can I negotiate the prices?A2: Yes, we may consider discounts for multiple container load of mixed goods   Q3: How much will the shipping charges be?A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested   Q4: Can I visit you?A4: Sure, our factory is in Qingdao, China. Please contact us to make an appointment   Q5: What if there is quality problem when we get the goods?A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future   Q6. What is your terms of packing?A6: Generally, we pack our goods in neutral white boxes and brown cartons.     Q7. What is your terms of payment?A7: T/T 30% as deposit, and 70% before delivery.We"ll show you the photos of the products and packages before you pay the balance   Q8. What is your terms of delivery?A8: EXW, FOB, CFR, CIF, DDU   Q9. How about your delivery time?A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of you
