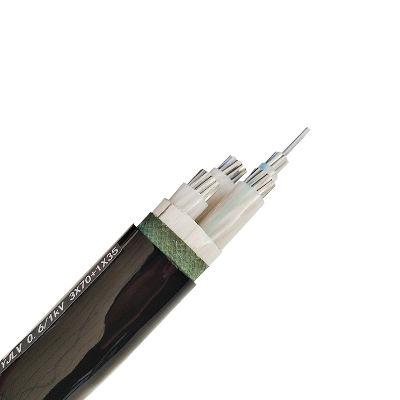

Product DescriptionXLPE insulated power cable has the advantages of not only high mechanical strength, good ambient stress resistance, good electrical properties and anti-chemical corrosion, but also simple construction, light weight and convenient to use. It applies to electrical power trensmission and distribution lines with A.C. rated voltage U0/U up to and including 0.6/1kV.Structure StandardsThe products can be produced in accordance with GB, IEC, BS, and other standards. Basic InformationModel No: YJV YJLV VV VLV VY VLY VV22 VV23 VV33 etc. Material Shape: Round WireRange of Application: Power Grid and All Industry Certificate: ISO9001,ISO14001, CCC, CESpecification: 0.5mm2 - 630mm2 Origin: Hebei, China.Voltage: 35KV, 10KV, 0.6/1KV, 450/750V, 300/500VCurrent: AC & DCInsulation Material: XLPE, PVC etc.Sheath Material: XLPE, PVC etc.Material Shape: Round wireColor:Customzied according to the customer's request.Application1. the rated voltage U0/U is from 0.6/1kV to 26/35kV.2. Maximum conductor temperature under normal operation is 90ºC.3. Maximum conductor temperature under short circuit (Max duration is not more than 5s) is not more than 250ºC.4. Minimum installation ambient temperature is not less than 0ºC. Installation bending radius are not less than the following specified values: Single core non-armored cable: 20D Single core armored cable: 15D 3 cores non-armored cable: 15D 3 cores armored cable: 12D (Note: D-outer diameter of cable)Technical ParametersVoltagela class 26/35kVType: YJV YJLV ZC-YJV ZC-YJLVnominal cross-sectionmminsulation thickness mmO.D.mmcapacitanceμF/kmapprox. ampacity (air) Aapprox. ampacity buried Areference weight of finished cable kg/kmCuAlCuAlCuAl5010.538.80.12245190225175174514357010.540.70.13305235275215202515919510.542.30.153702853302552330174212010.543.90.164253303752902647190315010.545.50.174853754203252998206818510.547.30.185554304753703414221824010.549.70.196505055554304044255630010.551.90.217455806304904696283640010.555.30.238706807205655801332050010.560.30.2510007908256457132403263010.564.50.28116092094074085154609Voltagela class 12/20kVType: YJV22 YJLV22 ZC-YJV22 ZC-YJLV22nominal cross-sectionmminsulation thickness mmO.D.mmcapacitanceμF/kmapprox. ampacity (air) Aapprox. ampacity buried Areference weight of finished cable kg/kmCuAlCuAlCuAl3X255.555.50.22 129100155120383334763X255.557.90.25 156120185144431337023X505.561.10.26 184143218169528143113X705.564.90.28 229177267207587843993X955.568.80.30 275213319247686747703X1205.572.20.32 316246363282790651923X1505.575.80.33 363281412319904555543X1855.579.90.35 4083174603571043560703X2405.586.40.38 1783725314131329975323X3005.591.60.40 5464255984661546381693X4005.5101.80.44 638501686539195059662 Company Profile Packaging & ShippingOur Customers FAQ1.Are you a manufacturer or trading company?We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in Beijing or Shijiazhuang Airport.2. How can I get a sample to test your quality?The samples are free, Customers should pay for the courier. Courier charge can be deducted from your order amount. 3. What's your Minimum Order Quantity?MOQ: 100meter. 4. Can I get a discount?Discount can be negotiated when we talked about the order. Anyway we will try our best to provide you the best quality with better price and best shipping rate. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
