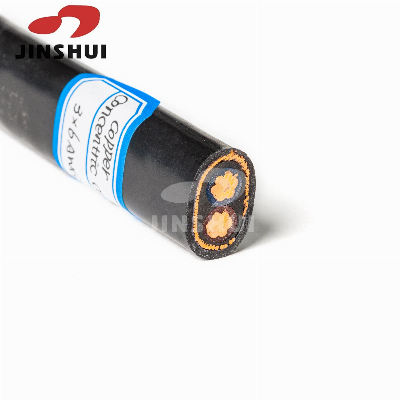

Concentric Cable Copper/Aluminum Conductor Stranded Coaxial Cable

Product Description1.ApplicationsThe concentric cable is used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places,directly buried or outdoors;its maximum temperature of operation is 90 °C and its voltage of service for all the applications is 600 V.2.StandardsASTM,IEC, BS.3.Construction1.Solid or stranded copper /aluminum conductor2.Insulation with XLPE or PE or PVC3.For two conductor cable, it is applied a helical mesh of copper wires over the central conductor4.For three or four conductors cable, parallel conductor or stranded conductor5.PVC filler6.Helical mesh of copper wires7.Wrapping tape8.Black color jacket of PE or PVC4.Available Size2x8AWG,2x6AWG,2x4AWG,2x2AWG, 2x1/0AWG,2x2/0AWG,3x8AWG,3x6AWG, 3×4AWG, 3x2AWG,3×1/ 0AWG, 3×2/0AWG,4×8AWG, 4×6AWG, 4×4AWG, 4 x2AWG and so on5.Voltage600/1000v6.Bending Radius:Single core:20D ±0.05,multi-core:15D ±0.057.Temperature Rating0°C to 70°C,Max conductor temperatures 90° at continuous service, 130° overloaded and 250° at short-circuit.TypeSizeConstructionAWGPhase ConductorXLPE(mm)Neutral conductorUV-PVC(mm)NO.Dia.ThickNo.Dia.ThickBipolar1270.781.14390.3211.141070.981.14250.5111.14871.231.14250.6431.14671.551.14250.8131.14471.961.14271.021.14871.231.14650.451.14Tripolar671.551.14650.5111.52471.961.14650.6431.52272.471.14650.8231.52Company ProfileZhengzhou Jinshui Industry & Commerce Co.,Ltd is a professional cable manufacturer and exporter with more than 20 years experience, located in Zhengzhou, China. Products mainly include bare conductor, aerial bundled cable(ABC), building wire, XLPE insulated Power Cable, coaxial cable, etc. With high-quality products and professional service, we have gained the trust from many customers and established long-term business relationship with them. Products have been exported to more than 30 countries.ExhibitionPackaging and Shipping Production Plant1. Professional production lines, experienced worker, ensure the production of every thing is fine and accurate.2. We choose excellent raw materials carefully to ensure the quality and meet the need of customers.3. Mechanical testing of Cables is done to determine the quality and mechanical characteristics  before delivery. FAQ1. Who are we?We are based in Henan, China, start from 2001,sell to Southeast Asia(39.00%),North America(20.00%),South America(15.00%),MidEast(15.00%),Africa(10.00%),Domestic Market(1.00%). There are total about 11-50 people in our office.2. How can we guarantee quality?Always a pre-production sample before mass production; Always final Inspection before shipment;3.What can you buy from us?Wire,Cable4. Why do you buy from us not from other suppliers?Jinshui Wire & Cable Group is also a key company of high and new technology. We have more than 20years export experience and knowmost of standards well. we can produce more than 1,400 types of cables and wires in scores of categories.5. What services can we provide?Accepted Delivery Terms: FOB,CIF;Accepted Payment Currency:USD,EUR,HKD,CNY;Accepted Payment Type: T/TLanguage Spoken:English,Chinese,Spanish   Welcome your kind inquiry!  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
