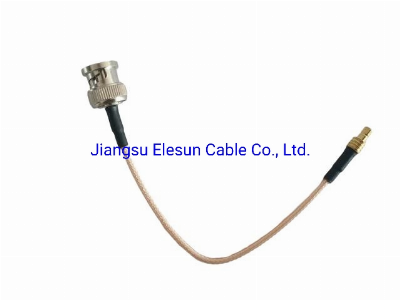

RF Coaxial Cable for GSM GPS Antenna

. Conductor:BC(Bare Copper). Insulation Material: Foam PE.1st Shielding: Aluminum Tape.2nd Shielding: Tinned Copper Braiding. Impedance:50Ω±2.Jacket: PE, PVC, LSZH. Color: Black,WhiteTypical Application:1.LSR200 is designed according to LMR200 coax cable, may be used for any application (ex. WLL, GPS, LMR, WLAN, WISP,  SCADA, Mobile Antennas  2.LSR-200 coax cable assembly can be used in wireless communications systems  3. LSR200 has PE jacket for outer door UV resistant and PVC jacket for indoor use, as well as LSZH jacket for your choiceBest Feature:  1. LSR 200/ LMR 200 cable features a flexible outer conductor, allowing the tightest bend radius of any cable of similar size and performance.Low Loss: Lowest loss of any flexible cable; comparable loss to semi-rigid  cables3.Spot light of the Aluminum foil between the insulation and braiding. It is material of PET, the Aluminium-PET composite tape is widely used in coaxial cable industry, the color of PET is usually blue or white(color is optional, no special function), the tape is self-adhesive, since the tape is with glue.AL/PET Tape (Aluminum Mylar Tape) is used for cable shielding as a shielding insulator when assembling electronic components. AL/PET Tapes provide more protection by increasing the metallic coverage without adding increased thickness to the diameter of the cable. It comes in 3 different colors: Dark Blue, Light Blue, and Silver LSR200/LMR200 low loss coaxial cable specificationsMaterial of Inner ConductorBC (Bare Copper)Structure of Inner Conductor1/1.12mmMaterial of InsulationFPE(Foam PE)Diameter of Insulation2.95mm1st  ShieldingAluminum TapeMaterial of Braiding(2nd Shielding)TC (Tinned Copper)Structure of Braiding(2nd Shielding)112*0.12mmMaterial of JacketPE, PVC, LSZHDiameter of Jacket4.95mmWorking temp-40ºC/80ºCImpedance50Ω±2Voltage1000VSWR(0-2500MHz)≤1.2Min.Bending Radius12.7mm  Company ProfilePackaging & Shipping    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
