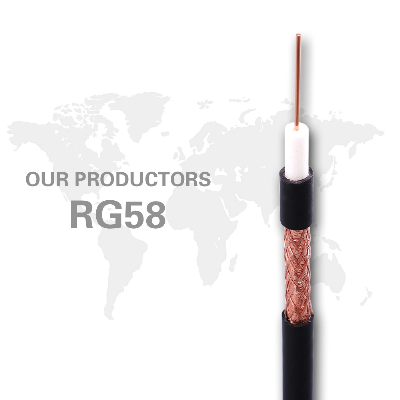

Bc Conductor PE Insulated PVC Jacket Rg58/U Coaxial Cable

  Basic InformationProfessional Coaxial Cable RG58/U with BC Conductor BC BraidingSpecifications:Solid PE 50ohm  Factory CCTV Rg58 Coaxial cableISO9001,CE,ETL,RoHS,REACH,BV,SGSInternation compliance Leading CABLE production baseName: Solid PE Insulated BC Conductor BC Braiding  Rg58 Coaxial CableApplication: Applicable to cable digital TV, monitoring TV and other electronic assembly coaxial cables, video monitoring lines, broadcast signal control, public Television antenna, closed-circuit television monitoring system, radio communication, transmission system and single control or internal wires of high-frequency equipment.Conductor: BCInsulation: Solid PECross Section: Based on client's requirement Product Description1) ConstructionCenter Conductor:19AWG BCDielectric:2.95mm Solid PEShield:95% BC BraidingJacket:4.95 mm PVCJelly/APDPer Customers Special Requirement2) CharacteristicsSparker Test:2500VACImpedance:50+2 OhmCapacitance:55+3pF/mVelocity of Propagation:87%Return Loss:20dB min (30-470MHz)3) AttenuationAttenuation[@68o F. (20o C.)]Impedance50±2 OhmCapacitance55(pf/m)Velocity of Propagation87%Return Loss@68oF.(20oC) Frequency (MHz)Maximum (dB/100 ft.)Maximum (dB/100 m)503.912.81005.0516.572008.226.94009.631.550011.939.047001755.779001859.02100019.864.96    Packing1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll2) Inner Packing: Wooden reel, plastic  reel, and paper reel3) Outer Packing: Carton box, pull out box, pallet available4) Other packing available according to clients' requestCertifications Company Profile We Hangzhou Xingfa Technology Co., Ltd. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.  With an annual production capacity of 200000 kilometers of coaxial cables, 80000 kilometers of network cables, and a daily production capacity of 6 tons of copper clad steel wires, the maximum daily supply of copper clad steel is 4 tons. The company currently has around 180 employees, including more than 30 technical and management personnel.  Other TypesBC: Bare Copper       CCS: Copper Clad SteelTC: Tinned Copper   CCA: Copper Clad Aluminum1) RG59 Coaxial Cable 75ohm Dual shield(standard) 0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.10±0.10mm PVC Jacket 2) RG59 Coaxial Cable 75ohm Tri-shielded 0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Al Foil+6.10±0.10mm PVC Jacket 3) RG59 Coaxial Cable 75ohm Quad Shield 0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Double Al Foil+ Al Wire braiding +6.70+0.10mm PVC Jacket 4) RG59 Coaxial Cable 75ohm With Messenger   0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.10±0.10mm PVC Jacket+1.02mm Messenger 5)  Customers'specifications are welcomed /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
