Kx6 with 2c Power Coaxial CCTV Cable

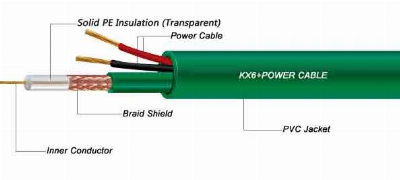

 Kx6 with 2c Power Coaxial CCTV Cable  KX6 +2c power cable Coaxial Cable  1) Coil With Carton  100M/Coil, 6 Coil/Carton  200M/Coil, 300M/Coil, 2 Coil/Carton  Mainly used for the distribution and access of electronic communication equipment, RF transmitter unit of communication system, buildingcabling and CATV; the most striking features are broadband and high speed; currently, also widely used in the multimedia transmission field Construction:                                     Center   Conductor:  7*0.2+0.01mm Solid CopperDielectric:  3.7+0.05mm Solid PEBradi Coverage:   35%-90% BC/CCAJacket:   6.15+0.05mm PVC /PEPowre Wires             7*0.37CU/CCA+PE+PVC                                Electrical Performance:  Impedance:  75+3 OhmCapacitance:  50+3pF/kmVelocity of Propagation:  85%Conductor resistance Max:   Inner:16.8 ohms/km  Outer:26 ohms/kmReturn Loss:  20dB min (5-2150MHz)    Attenuation [@68o F. (20o C.)]  Frequency (MHz) Maximum (dB/100 ft.) Maximum (dB/100 m)   5 0.46 1.5 50 1.31 4.3 100 1.80 5.9 200 2.56 8.4 400 3.66 12.0 800 5.34 17.5 862 5.58 18.3 950 5.86 19.2 1350 7.11 23.3 1750 8.24 27.0 2150 9.33 30.6 3000 11.22 36.8China factory top quality low price semi finished coaxial cable RG6 for CCTV/MATV/CATVA: 1.02Cu/CCS+4.57FPE+Al Foil+45%-90%Braiding Coverage+6.91PVC   Optional: 1) Inner Conductor: Tinned Copper, Bare Copper, Copper Clad Steel available; 2) Al-foil: Al-foil, bonded Al-foil, double bonded Al-foil, and APA available; 3) Braiding Wire: AL-Mg, Bare Copper and Tinned Copper available; 4) Braiding Wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available; 5) Braiding Coverage: 45%- 95% available 6) Jacket Color: White, Black, Transparent and etc. Specification: StructureMaterialRG6 DUALRG6 TRIRG6 QUADConductor                BC/CCS1.02mm(18AWG,0.04'')DielectricFPE4.57mm(0.18'')1st ShieldAl Foil100%, Overlap>2mm2nd ShieldBC or Al Braiding30%-95%60%3rd ShieldAl Foil-100%, Overlap>2mm4th ShieldBC or Al Braiding--40%Jacket PVC/PEOuter Diameter6.91mm(0.272'')7.02mm(0.276'')7.62mm(0.30'')Nominal Thickness0.76mm(0.030'')0.76mm(0.030'')0.86mm(0.034'')MessengerSteel1.30mm or 1.83mm Dielectric Adhesion>20N/5cmBreaking Strength of Messenger1.30mm 82kgf;1.83mm 166kgfImpendence75±3 OhmCapacitance50±3.0 nf/KM Return Loss (100% swept)1~470MHz≥22dB470~1000MHz≥20dB1000~2200MHz≥18dB  Applications : 1) CATV-community antenna television; 2) CCTV-closed-circuit television 3) DBS-direct broadcasting satellite.   OEM Service: 1.customized Logo silk print / up sticker/mould 2.Sample Lead Time: Within 10days 3.Packing:Standard export packing Why choose us: 1) We are a professional direct cables manufacturer more than 10 years located in Lin'an,Hangzhou. Can provide you high quality cables with best factory price. 2) Our products are saleable in all over the world, and have been exported to many countries. 3) Delivery in time: We have more than 100 experienced worker, can delivery in time with good quality. 4) We have the strict quality control system. All the products are checked before delivery. 5) Reliable Service: All the inquiry and questions would be replied within 24 hours.   Other RG6 series:F6SSEF/F6SSV/F6SSVM/F6SSVR/F6TSV/F6TSVR/F6TSVV 830BM/F660BEF/F660BEM/F660BVR/F660BVV/F677TSEF/F677TSVR/F660BV-APD/F660BVM/F690BEF/F690BVV-APD/F690BVMFactory photos and production processOur Service:   1) Quick Response --All inquiries will be replied within 24 hours.   2) Professional Quotation --All prices will be quote according to customers' detailed         specifications & requirements.   3) OEM & ODM Service    4) Can print your own brand on the jacket printing with foot or meter marking.   5) Make customized designs for stickers, drums, outer cartons, etc.   6) Stable Quality --All materials and products passed restrict QC procedures,comply with        international standards.   7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after        Confirmation in usual. Good After-sales Service --We chose the fastest vessel to POD for delivery our goods to clients,--All Documents will be issued according to clients' instructions, to save troubles from local customs.--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients. FAQ: Q1: What kind of cable do you produce?A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etcWe also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc Q2: What's your MOQ? Can you offer free samples?A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side. Q3: What's your delivery time?A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order
