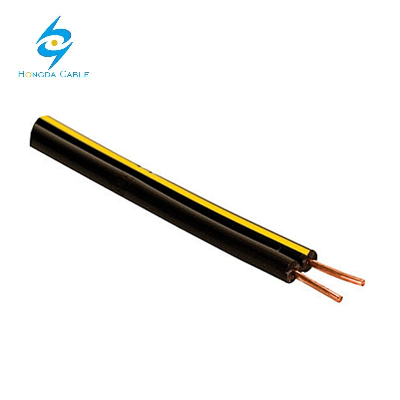

2 Core Steel Coated Drop Wire Telephone Copper Wire

Two conductor lay parallel insulated telephone cable drop wireApplicationsThe drop wires are designed for extending an open wire line or distribution pairs from a pole or cable terminal to a building. The drop wires are to be installed between distribution point and telephone subscriber premises.StandardsCW 1166 (Drop Wires No. 1)CW 208 (Drop Wires No. 2)CW 1247 (Drop Wires No. 6)CW 1320A (Drop Wires No. 8)ConductorsInsulationSolid cadmium copper of 0.91mm to BS 4807 (Drop Wires No. 1)PVC to BS 6746 T1 (Drop Wires No. 1)Solid copper covered steel of 0.71mm to BS 4807 (Drop Wires No. 2)PVC to BS 6746 T2 (Drop Wires No. 2)Solid copper covered steel of 0.81mm to BS 4807 (Drop Wires No. 6)PVC to BS 7878 T1 (Drop Wires No. 6)Solid cadmium copper of 1.14mm to BS 4807 (Drop Wires No. 8)PVC to BS 6746 T1 (Drop Wires No. 8)Cable Core Assembly: Two conductors are extruded parallel, figure-8 type.Electrical propertiesNominal Conductor Diametermm0.910.710.811.14BT Drop Wire Reference No. 1No.2No.6No. 8Conductor Sizemm20.650.40.521.02Minimum Insulation Resistance @500V DCMΩ.km24245024Minimum Insulation Thicknessmm0.751.020.81.52Nominal Insulated Conductor Diametermm2.412.752.414.18Mechanical and thermal propertiesTemperature range during operation (fixed state) : -30°C - +70°CTemperature range during installation (mobile state) : -20°C - +50°CMinimum bending radius : 10 x Overall Diameter (unarmoured cables)Dimensions and weightCable CodeNumber of CoresMinimum Insulation ThicknessMaximum Cable Dimensions Diameter X HeightNominal Weight  mmmmKg/km0.91mm Conductor, 2.41mm Insulated WireTP1166-Y-1P091-DW120.752.7x5.6250.71mm Conductor, 2.75mm Insulated WireTP208-Y-1P071-DW221.022.75x6.0200.81mm Conductor, 2.41mm Insulated WireTP1247-Y-1P081-DW620.82.5x5.4231.14mm Conductor, 4.18mm Insulated WireTP1320A-Y-1P114-DW821.524.44x9.434Packing100m/roll,200m/roll,305m/roll,100yard/roll,200yard/roll,305yard/roll,other lengths according clinets requiresInner packing:wooden reel,plastic drum,paper stoolOuter packing:carton box,pull out box pallet availableOther packing is available according to the client's requirementsOUR SERVICE: 1. Any inquiries will be replied within 24 hours. 2. Professional manufacturer, 12 years manufacturing experience.    3. OEM/ODM available4. High quality, reasonable and competitive price, fast lead time.5. Good after-Sale Service.1) All products will have been strictly Quality Checked in house before packing2) All products will be well packed before shipping.6. Faster delivery:Sample order in stock, and 5-7 days for bulk production.Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
