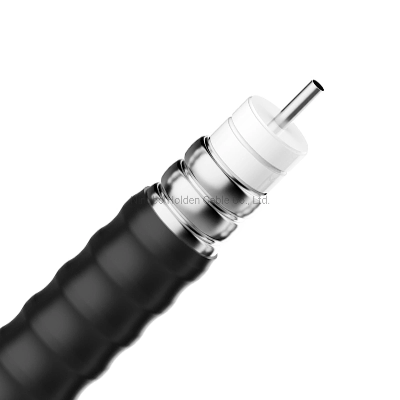

1/4" Antenna 7/8 Inch RF Feeder Coaxial Cable

50Ω RF 7/8" coaxial cable description: The cable is mainly applied to the base station and electronic transmission system of communication system, and is used as the rf connection feeder in communication, radar and other electronic equipment, which has the characteristics of high use frequency, low attenuation, low voltage standing wave ratio, and not easy to be affected by moisture. Charateristics: High Flexibility Low Attenuation High Power Rating Resistant to hostile environments Application: DAS & Small Cell. Telecomunications. Aerospace Industries. Electrical SpecificationsImpedance50±4 ohmRelative Velocity Of Propagation86%Nominal Capacitance76 pF/mNominal Inductance0.19 μH/mCut-off Frequency8.8GHzPeak Power Rating40 kWInsulation Resistance≥ 5000 MΩ x kmDC Breakdown Voltage4000VJacket Spark Test Voltage8000 VrmsInner Conductor DC-resistance≤ 1.55 Ω/kmOuter Conductor DC-resistance≤ 2.7 Ω/km  Item.(n)Structure(mm)Insulation dia.(mm)Braid coverage(%)Approx overall dia.(mm)RG5819/0.182.95-4.95RG591/0.813.7060%6.10RG59message1/0.81+1/1.303.7060%6.10RG61/1.024.5760%7.00RG6message1/1.02+1/1.304.5760%7.00RG71/1.295.7260%8.10RG7message1/1.29+1/1.835.7260%8.10RG111/1.637.1160%10.1RG11message1/1.63+1/1.837.1160%10.1RG1747/0.161.5095%2.80RG1791/0.311.4295%2.54RG2137/0.757.25-10.1QR5001/2.7711.5-14.7QR5401/3.1513.0-15.4  Other Hot ProductsFAQ1. Are you a factory or trading company?  We are a cable factory over 15 years, works with everything from the raw material to the finished product 2. Where is your factory?  Our factory is located in Shaoxing and Hangzhou 3. How can I get some samples?  We are honored to offer you samples for quality evaluation. 4. How does your factory do on quality control?   You order will be test 100% before packing and shipping or you also can arrange your QC department 5. What your delivery date?   15-30days after your kind deposit 6. Can you printing our logo on cable or packing?   Yes, available.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
