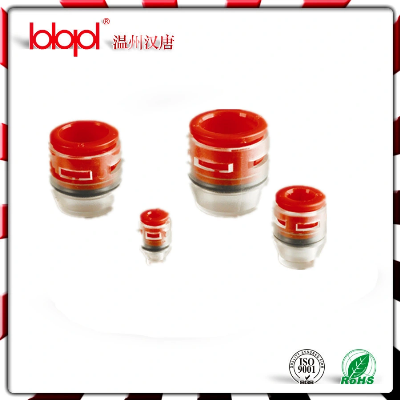

Micro-Duct Coupling, Direct Buried Microduct Connector, Coupler and End Plug

Plastic HDPE Pipe Fittings Specifications Clear Connector for MicroDuct Easy installation can be connected and disconnected 10 times System Benefits l Installation time reduced. l Locking clips available in order to prevent microducts accidental disconnection. l Transparent body allows inspection of correct installation of the cable. l Anti shock cover available in order to prevent damages. It's special design allow inspection of correct installation of the cable also when installed. Locking clip function included. Technical Specifications Fittings         Accessories: Body:           Transparent PA                            Locking clip:    POM Cartridge:    Nickel plated brass                     Anti shock cover: PP Collect:        Black POM Seals:          NBR Lock claws: Stainless steel Performance Temperature: Working temperature: -15°C ~ +45°C Pressure: Working pressure: 15 bar Burst pressure: >45 bar Specification: No.DescriptionModel No.For Tube OD(mm)13mm Straight ConnectorSTR033-324mm Straight ConnectorStr044-435mm Straight ConnectorSTR055-546mm Straight ConnectorSTR066-657mm Straight ConnectorSTR077-768mm Straight ConnectorSTR088-8710mm Straight ConnectorSTR1010-10812mm Straight ConnectorSTR1212-12914mm Straight ConnectorSTR1414-141016mm Straight ConnectorSTR1616-16 Welcome To Contact Us TeL:86-21 62717586 Fax:86-21-62717585 Mobil:86-13968770309 /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
