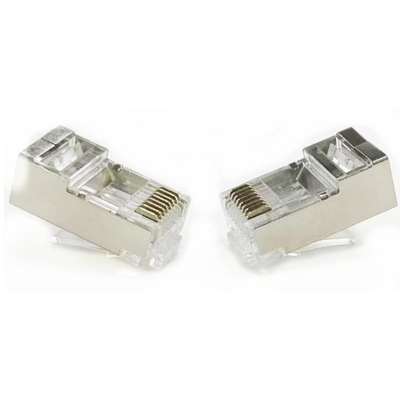

8 Pin RJ45 Cat 6 Connector Male Plug High Quality

ZSINE OFC  High Quality 8pin RJ45 Male Plug Ethernet Connector cat6 connector RJ45 cat 6 ConnectorWe are professional fiber optic cable manufacturerWelcome to go to the factory !Send message to our can get free samples.A pretty discount will be served for a big order. Meanwhile we accept customization!Product Detail:Name UTP RJ45 Shield 8P8C connectorInterface TypeRJ45Pin8P8CGold ThicknessFU, 3U, 6U, 15U, 30U, 50UColorTransparentInsulation Diameter0.64mm, 0.56mm, 0.50mm, 0.40mmSuitable forCAT5/CAT5E/CAT6 cablePackage100pcs/1000pcs/pvc bagLogoCustomer Brand or EXW logoProduct KeywordsCat5e 10u Modular Plug,Two Sets Utp Rj45 Shield 8p8c Modular Plug,Buy Better Data Transmission ConnectorSpecification:1). Transparent color 2). Meet or exceed the requirement in the cat5e T568A and T568B 3). Contacts are nickel plated, phosphor bronze with 1U, 3U, 6U….50U gold plated 4). Exclusive stagger conductors guide design reduces near end cross talk 6). Accept 22AWG, 23AWG, 24AWG, 26AWG solid with a insulation diameter of 0.64mm, 0.56mm, 0.50mm, 0.40mm Electrical:1) application:250vac,2a(max) 2) Dielectrical with standing voltage:500v AC 3) Insulation resistance:35m ohm(max), after environmental testing Mechanical:l ) Cable- to-plug tensile strength:20lbs(89n) (min.) 2) Durability: 750 matching cycles 3) Temperature range:-40~60 ºCMaterial and finish:1) Housing: polycarbonate(pc) UL94-v-0 or UL 94-v-2 2) Contact blade: phosphor broze 3) Gold plating:80u over nickel,3-50u gold plating Leaf Spring can 180°flexural:·It is made of good quality material can multiple bendingCompany Profile /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
