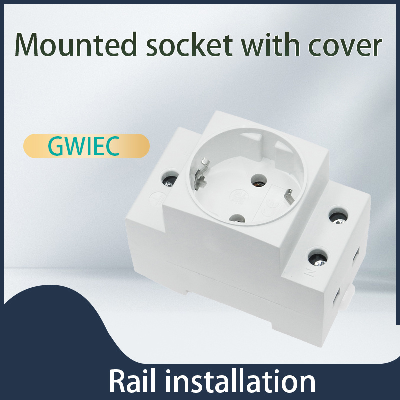

Modular Socket DIN Rail Mount Install in The Electrical Us Standard

Product Description  AC30 series Din rail modular socket Application                                                              (AC30 Moudular Socket)AC30 modular socket can be used together with our other modular products for connection of mobile devices,tools or electric and electronic non-modular equipments directly inside civil and industrial switchboards.Specification Type Rated current (A) Pole S Width(mm) rated voltage (V) Connection capacity AC30-10/2 10 2 18 230 ≤16mm 2 AC30-16/2 16 AC30-25/2 25 AC30-10/3 10 3 36 AC30-16/3 16 AC30-25/3 25 54 AC30-16/4 16 4 54 400 AC30-25/4 25 72 Technical DataFrequency:50 or 60Hz.Overvoltage category:3Rated insulation voltage Ui:500VPullution degree:2Rated impulse withstand voltageProtection class:IP20Uimp:5000VStandard mounting:35mm DIN railDielectric test voltage at ind.Freq.Ambient temperature:-5oC to +40oCfor 1min:2.8kVStorage temperature:-25oC to +70oCApplication                                                    (AU5 Modular Socket )ACF and ACG 20 modular socket can be used together with our other modular products for connection of mobile devices,tools or electric and electronic non-modular equipments directly inside civil industrial switchboards.Specification Type Rated current(A) Standard Width(mm) Connection capacity ACF 10,16,25 France 44.5 ≤6mm 2 AU5 10,16,25 Germany 44.5 ≤6mm 2Technical DataFrequency:50 or 60Hz.Electrical life: 5000timesMounting category:2,3Rated insulation voltage Ui:500VPullution degree:2Rated impulse withstand voltageProtection class:IP20Uimp:5000VStandard mounting:35mm DIN railDielectric test voltage at ind.Freq.Ambient temperature:-5oC to +40oCFor 1min.: 2.8kVStorage temperature:-25oC to +70oCCompany InformationGWIEC will insist her belief "Quality is Brand"to bring "Better Quality, Better Service and Better Price"to customers, our goal is to maximize your profit and bring mutual success to both of us!  CertificationsGWIEC attaches great importance of Product Quality and Safety Production Process.Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates. we supply for global factories and distributors which are experienced in filed electric products and green energy. Just like Europe, South,America,Russia, Asia etc.  FAQ1.Could I put my own logo on it?  > Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc. 2.Should I pay extra for logo printing ?  > Normally usd 0.017/per color,according to the actual situation.3.How about the quality ?  > Acquire the CE & SGS Certification.  > 100% QC in produce process and before package.4.Could I buy 1pc sample first and small order ?  > Of course, support sample order and small order, especially for new customers under certain condition 5.How much for 1pc sample ?  >Some cheap ones may free for 1pcs but need to see the actual stock. 6.If I have my thoughts, do you have person to design according to my concept?  > Certainly,our design team is willing to do for you. 7.How long to make a sample?  > 2-5 days which depends on the samples' complexity. 8.Is the sample fee refundable or not?  > Sure, refundable once order confirmed.*****************************************************************************************************************************************************With more than 15 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details in the Below, Click "Send" Now!!!      /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
