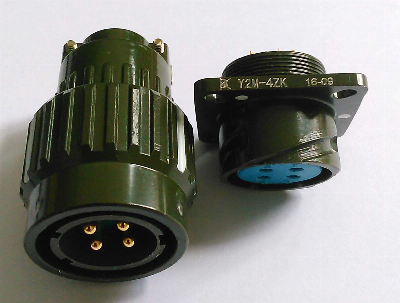

Y2m-4 Pins Power Circular Bayonet Coupling Connectors

Y2M series (Y21M series) circular connectors are useed extensively in line connections between electrical equipment, various instruments and meters. These connectors have the features of small volume, light weight, convenient application, high durability of plugging and unplugging, good sealing performance, resistance against corrosion, high conductivity and high dielectric strength. It's the ideal product of a new generation to replace the old "P" series connectors. Product Ordering Y2M - 4 Z K L M 1 2 3 4 5 6 1. Name of series: Y2M series circular connectors 2. Number of contacts: 2,3,4,5,7,10,14,20 3. T:Plug, Z:Receptacle 4. Type of contacts: J:Pin, K:Socket 5. Termination: L: With Cable shell, B:Square Flange 6. M:Receptacle sealing   Technical characteristicsTemperatureRelative humidityAtmosphereVibrationShockEndurance-40°C~+85°C(92~98)%at40+2°C 101.33KPa~6.67Pa10~2500Hz,196m/s²392m/s² 500 cycles  Contact Ø CurrentVoltageContact resistanceØ1mm5A250V≤5mΩØ1.5mm10A250V≤3mΩØ2.5mm(only3,4,5)   25A    250V≤1mΩ                                                EnvironmentVoltage proofInsulation resistanceNormal1000V≥1000MΩHigh temperature900V≥1000MΩMoisture500V≥100MΩDimensions  TypeMating sizeDimension sizeAD1MBD2D3LL1L2Y2m-2,3,4,5,722-24Ø12M21×0.7531Ø31Ø22.7795145Y2m-10,14,2022-24Ø12M21×0.7531Ø31Ø22.7795145Y2A-4,10,1228Ø18M28×138Ø38Ø28.7885649Y2m-14,19,2428Ø18M28×138Ø38Ø28.7885649Y2m-32,3728Ø18M28×138Ø38Ø28.7885649Y2m-36,50,6536Ø26M36×146Ø46Ø36.71086760Y2m-81,12051Ø40M50×160Ø60Ø51.21267771    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
