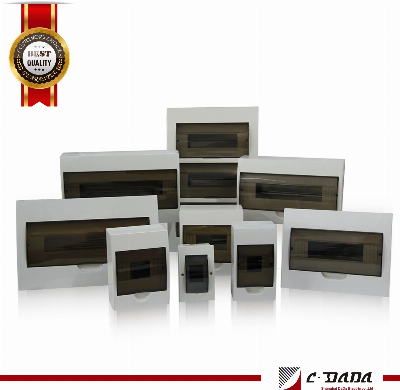

Txm Series MCB IP40 Plastic Base Modular Plastic Empty Enclosure

Modular plastic empty enclosure for MCB IP40 (TXM series) plastic baseIntroduction    Overall panel design is luxury and attractive, the face covering colors are dark green and brawn (provided according to the color needs of the different interior residential designs except for the standard colors). The design of the face covering gives a noble and elegant feeling. lure Ivory, high Strength, never change color,Transparent material is PC. Fixed frame, simple structure, and easy installation. Model DescriptionTXM: series of distribution boxNumbers of circuit:4,6,8,12,15,18,24,36M:means Open mountedR:means Concealed mountedA:the cover is transparentP: plastic baseParameters▪ Rated current: 63 [A]▪ Short-circuit making current: 10 (KA)▪ Shell protection grade: IP40;▪ Shell material: ABS polymeric carbon▪ Color: White▪ Face covering: TransparentOutline dimension Surface Flush Packing informationTXM distribution box(plastic) CartonL*W*H(cm)(PCS/CTN)G.W.(kgs/ctn)N.W.(kgs/ctn)2 waySurface mountingSingle copper bar51.5*48*325015.57124 way50*36.7*433011.38.256 way51.5*47.5*433015.211.78 way65*53.2*42.23018.21410 way52.5*42.5*47.52014.11312 way52*42.5*542015.812.315 way53*33*631513.691118 way68.5*54*38.5151813.824 way53.5*34.5*56.5101612.536 way54.5*28.5*48511.658.54 wayFlush mountingSingle copper bar 47*44*47.33013.710.56 way54.3*46.8*473016.812.98 way47*47*66.53018.814.610 way48*46*512014.613.512 way48*48*592016.412.615 way45.5*35*701513.6312.518 way78.5*50.5*421518.151424 way52*36*63.5101714.436 way54*31.5*50.5512.39.3  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
