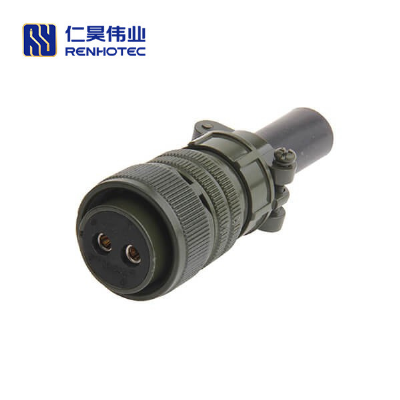

Ms3106A20-23s Jae 2 Position Soldering Plug Circular Connector with Bushing

  Product DescriptionWelcome to Renhotec Group Ltd! Our Slogan is Make Connection Easier... Detailed PhotosFull Series : MIL-5015 Military ConnectorAll types of PV Connector from OEM Manufacturer in China Mil-C-5015 series connectors conform to US military Mil-C-5015 standard (GJB600), with high strength Aluminum Alloy shell, Synthetic rubber insulator, threaded coupling, Alternate insert positioning, solder and crimping terminal, low cost, simple and practical design, widely used in industrial machinery and equipment, military, defense equipment, marine, automobile industry, instrument, and servo motor, etc. Our connectors can replace European and American similar products.  PerformanceFastening TypeThreadedRated Voltage250V(High Temperature), 500V(Normal Temperature)Rated Current13A for 16AWG, 150A for 0AWG, 23A for 12AWG, 46A for 8AWG, 80A for 4AWGInsulation Resistance5,000 Mega ohms minimum (at 25°C)Mechanical Operation>500 Mating CyclesTemperature Range-55°C ~ + 125°CProtection DegreeIP67How to Order MS3102  A  18  10  PWXXX  1    2    3    4    5   6 7  81. Connector TypeMS - designates Military StandardDS - Amphenol MIL- C-5015 Europe use2. Connector Style3100- wall mounting receptacle3101- cable connecting plug3102- box mounting receptacle3106- straight plug3108- 90° Right angle plug3. Service ClassA - General purpose, Solid EndbellE - Environmental resisting, with grommet seal & strain relief back shellF - Environmental resisting with grommet seal & strain relief back shell3106F and 3108E style include a front 'O' ring sealR - Environmental resisting with grommet seal, light weight and shorterOverall length 310R style include a front 'O' ring seal4, 5. Shell size and insert arrangement6. Contact TypesP- designates pin contact, (+) MaleS- designates socket contact, (-) Female7. Insert Rotation No suffix-Normal"W", "X", "Y", or "Z"8. Plating informationNo suffix - Olive Drab ZincCD - CadmiumC1 - Cobalt (Without +6 Cr)621 - Black Zinc689 - Electro-less Nickel426 - Electro-less Nickel & gold flash contacts  Application Company ProfileRenhotec Hardware Electronics Co., Ltd.RENHOTEC is a full-service leading global supplier of a wide variety of standard and custom RF coaxial connectors, cable assemblies and unique solutions for today's cutting edge applications. RENHOTEC is fully committed to meeting the needs of our customers, we offer a wide range of RF connector interface types and are able to produce custom products for specific applications. Our team is always focused on designing, developing and taking pride in custom innovative solutions to meet our customers' needs.   - Acquired ISO9001, ISO14001, QC080000 and TS16949 certification.- All items are in line with EU ROHS and REACH environmental requirements.- Markets supported include automotive, medical, instrumentation, telecom and wireless etc.  Our AdvantagesCustomized DesignProfessional engineer team help you with drawing design and provide you suggestions based on your special electrical and environmental performance requirements.Technology ImprovementEstablish and optimize the process of the production line. Continuous improvement to make sure the targeted quality and yield achieved and maintainQuality Inspection CenterWith professional inspection center to test the electrical, mechanical and environmental performance and ensure the high quality. FAQQ :How can I get a sample to check your quality?A : Free sample is available.Q :What is your term of delivery?A : Usually, we use EXW. As well, FOB, CIF and DDP are all available. Others can be netotiatable.  Q :When can I get the price?A : All the quotaitons can be handled within 6-12 hours.  Q: Could you accept custom products?A: Yes, Any custom design can be offered.  Q :What about the lead time for the mass production?A :Honestly, it depends on the order quantity and the season you place the order. Normally, it is about 20-25 days for qty around 50K.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
