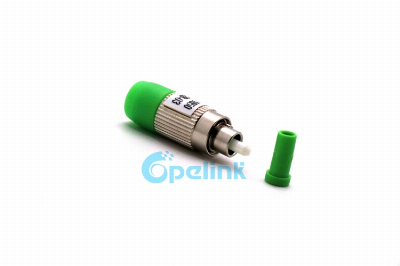

FC/APC Metal Plug-in Fiber Reflector with Factory Price

High Quality FBG Reflector, FC/APC Metal Plug-in Fiber Reflector with Factory priceDescription:FBG Optical Reflector,it is the optical fiber type device which formed the diffraction grating into the core of an optical fiber, and gave the function as a light filter.FBG ID Connector, with optical connector at on end, and optical adapter at the other end, is easy for fiber connector. When wavelength interrogator send certain ranged WDM signals to FBG ID Connector, the FBG will reflect certain wavelengths, so as to detect the fiber connection.Features:1.High Stability and High Reliability2.Adapter shape,easy for connection3.Different wavelengths,no influence on formal telecommunications4.Long Distance Optical Cable Detection5.Resistant to electromagnetic interference  Application:Detection and maintenance of Passive Optical Network lines (applied to FTTx)  Specifications:  ParametersUnitSpecificationsWorking bandTransmission bandnm1260~1625Reflection bandnm1645~1655Transmission bandInsertion LossdB≤1.4 (1260~1360nm)≤1.4(1460~1600nm)≤3.4(1600~1625nm)>21 (1645~1655nm)Insertion Loss - reflection banddB≤1.01645~1655nmReturn LossdB>35(1260~1360nm)>35(1460~1580nm)>30(1580~1620nm)>20(1620~1625nm)PDLdB≤0.4(1260~1600nm)RippledB≤0.6(1645~1655nm)TDLdB≤0.5(1260~1600nm)Maximum optical powerdBm27      ----------------------------------------------------FAQ---------------------------------------------------Q1. Can I have a sample order for this product? What' MOQ of it?A: Yes welcome send sample order for test. MOQ is 1 piece.  Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks.  Q3: What' s the payment termA: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable. Q4. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5: What' s the freight of it? A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you. Q6: Do you offer guarantee for the products?A: Yes, we offer 1-2 years warranty according to different products. Q7: What action will you take if there are some product problems?A: If there are defective ones in the batch of products, we will offer spare ones for.     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
